| IMAGING SENSOR |
|
|
| |
SD/HD |
4K UHD |
| |
Image Sensor |
1.0-inch 4K UHD CMOS Sensor |
| |
Total Pixels |
~13.4 megapixels (4268x3148) |
| |
Effective Pixels |
~8.29 megapixels (3840x2160) |
| POWER |
|
|
| |
Power Supply (rated) |
4.4V DC (battery pack), 24V DC (DC In) |
| RECORDING |
|
|
| |
Frame Rate |
60p, 30p, 24p |
| |
Recording Media |
SD card [x2] (SD/SDHC/SDXC) |
| AUDIO |
|
|
| |
Recording System |
Linear PCM: 24-bit / 48 kHz / 4-channel (XF-AVC)
Linear PCM: 16-bit / 48 kHz / 4-channel (MP4)
MPEG-2 AAC LC 16-bit / 48 kHz / 2-channel (MP4) |
| |
Microphone |
Stereo (using electret condenser microphone) |
| LENS SYSTEM |
|
|
| |
Lens |
Canon 15x Zoom, 8.3-124.5mm (35mm equivalent 25.5-382.5mm), f/2.8-4.5 |
| |
Focusing System |
Dual Pixel CMOS AF w/Eye Detection |
| |
Min. Focusing Distance |
10mm at wide end, 60cm across entire zooming range |
| |
Image Stabilization |
Optical system (lens shift) + electronic stabilization (Image rotation and camera movements in the yaw and pitch directions are electronically corrected.) Modes: Dynamic IS, Powered IS, Standard IS, IS Off |
| |
Filter Diameter |
58mm |
| EXPOSURE AND METERING |
|
|
| |
Manual Exposure |
Yes |
| |
Max. Shutter Speed |
1/2000 |
| |
Min. Illumination |
~1.5 lux (with 1/30 sec. shutter speed, 29.997P) |
| INPUT/OUTPUT |
|
|
| |
Genlock Terminal |
Yes |
| |
Timecode Terminals |
Yes |
| |
USB Terminal |
Type-C, SuperSpeed USB (USB 3.2 gen 1x1) supported, PTP class supported, UVC Supported Type-A, USB HOST supported (max. voltage: 5V / max. output current: 900 mA) |
| |
Video Terminal |
HDMI™ connector, 12G-SDI terminal |
| |
Audio Terminal |
3.5mm stereo mini-jack, XLR 3-pin jack (two channels) |
| |
HDMI Terminal |
HDMI™ connector (Type A) |
| |
Headphone Terminal |
3.5mm stereo mini-jack |
| |
12G-SDI Terminal |
Yes |
| |
Ethernet Terminal |
Ethernet connector (RJ-45) (supports 1000BASE-T and SRT protocol) |

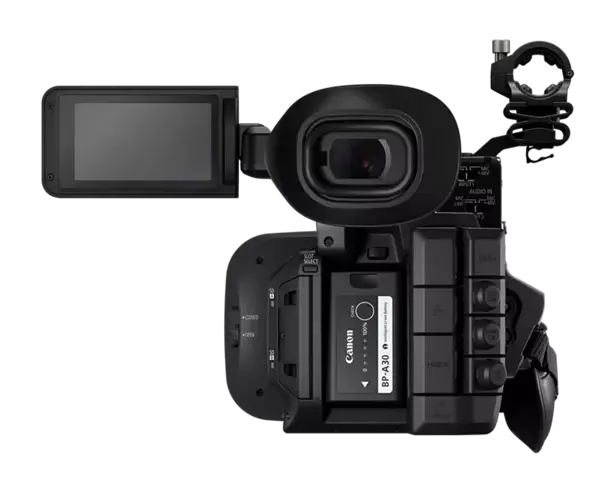

| LCD MONITOR/EVF |
|
|
| |
Viewfinder |
0.36-inch color OLED display, approx. 1.77 million dots, approx. 100% field of view |
| |
LCD Screen |
3.5-inch LCD, (~2.76 million dots) |
| OTHER |
|
|
| |
Operating Temperature Range |
For Performance: Approx. 0-40° C, 85% (relative humidity)
For Operation: Approx. -5-45° C, 60% (relative humidity) |
| |
Dimensions |
~168 x 173 x 333 mm /~6.6 x 6.8 x 13.1 in.) [body only; excludes grip belt]
~200 x 219 x 385 mm / ~7.9 x 8.6 x 15.2 in.) [Includes lens hood, eyecup, mic holder unit] |
| |
Weight |
~4.4 lbs. / 2010g (including grip belt; excludes hood, mic holder unit, eyecup, battery) |
