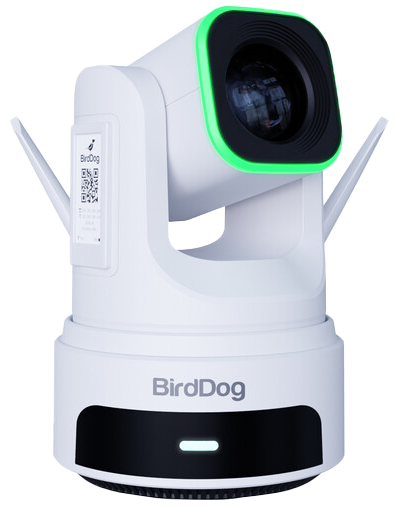

X1 Ultra PTZ Camera

• HALO Tally Light: Sports the most visible and effective Tally system available
• AI Tracking: Intelligently follows your subject’s movements in real-time
• NDI | HX3: Provides reduced network impact and excellent image quality
• Integrated NDI | HX Decoder: Designed specifically for confidence monitoring, return feeds, or teleprompter usage
• WIFI:  Built-in WIFI functionality
• E-Ink Label: Ensures that your set-up is clear and each camera easily identifiable even when the power is off
• Dual Network Output: Combines NDI HX and SRT/RTMP protocols for seamless on-site and remote/CDN connectivity
• Baseband HDMI Connectivity: Easily connect with technology like switchers, SDI converters, HDMI products...
• Serial Control: Seemlessly integrates into your existing infrastructure
• USB Webcam: Features USB-C for connecting directly to Zoom, Teams and most apps that support USB UVC input
• Control Support: Each X1/X1 Ultra ships with their own IR remot and hardware controls support for multiple controllers
• API 2.0 Support: With support for RESTful API, there are many ways to program your own contorl over your camera
• Zoom: 12X Optical zoom

Feature	X1	X1 Ultra
IMAGING
Image Sensor	Sony 1/2.8” CMOS • FULL HD	Sony 1/2.8” CMOS • ULTRA HD
Lens	f=5.5mm ~ 110mm	f=4.1mm - 49.2mm
Optical Zoom	20x	12x
Video Format	1080p @ 60/59.94/50/30/29.97/25fps 720p @ 60/50/30/25fps	2160p @ 30/29.97/25fps 1080p @ 30/29.97/25fps 720p @ 30/29.97/25fps
Horizontal angle of view	55.8° (W) – 3.2° (T)	70.28º (W) - 6.57º (T)
Vertical angle of view	32.2° (W) – 1.8° (T)	42.06º (W) - 3.76º (T)
Diagonal angle of view	61° (W) – 3.64° (T)	78.36º (W) - 7.5º (T)
Aperture	F1.6 ~ 3.5	F1.8 ~ 2.68
Focus	Auto, Manual	Auto, Manual
Exposure	Auto, Shutter Priority, Iris Priority, Manual	Auto, Shutter Priority, Iris Priority, Manual
Backlight Compensation	Yes	Yes
Digital Noise Reduction	2D and 3D Noise Reduction	2D and 3D Noise Reduction
SNR	>50dB	>50dB
Effective Pixels	2.07 MP	8.29 MP
MECHANICAL
Pan/Tilt Rotation	±175°, -90°～+90°	±175°, -90°～+90°
Pan Control Speed	0.1 -80°/sec	0.1 -80°/sec
Tilt Control Speed	0.1 -60°/sec	0.1 -60°/sec
Preset Number	255 presets	255 presets
I/O INTERFACE
Video Output Interfaces	HDMI, USB-C UVC 1.1, Network	HDMI, USB-C UVC 1.1, Network
Video Compression Format	H.264, H.265	H.264, H.265
Network Interfaces	100M adaptive Ethernet port; POE IEEE802.3af, Wi-Fi IEEE 802.11ac	100M adaptive Ethernet port; POE IEEE802.3af, Wi-Fi IEEE 802.11ac
Encoder Network Protocols	NDI|HX2, NDI|HX3, SRT, RTSP, RTMP	NDI|HX2, NDI|HX3, SRT, RTSP, RTMP
HDMI Decoder Network Protocols	NDI|HX2, NDI|HX3	NDI|HX2, NDI|HX3
Control Interfaces	10M/100M Ethernet, Wi-Fi IEEE 802.11ac, RS232 (input & output), RS485, TYPE-C(UVC1.1)	10M/100M Ethernet, Wi-Fi IEEE 802.11ac, RS232 (input & output), RS485, TYPE-C(UVC1.1)
Control Protocols	VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI	VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI
3rd Party Control Protocols	Support for Q-sys, Crestron and BitFocus Companion modules is scheduled for August 2024	Support for Q-sys, Crestron and BitFocus Companion modules is scheduled for August 2024
GENERAL PARAMETERS
Input Voltage	DC 12V, POE IEEE802.3af	DC 12V, POE IEEE802.3af
Input Current	2.0A (Max.)	2.0A (Max.)
Power Consumption	13W (Max.)	13W (Max.)
Working Temperature	-10℃ ～ +40℃ +14°F ~  +104°F	-10℃ ～ +40℃ +14°F ~  +104°F
Working Humidity	20% ～ 80%	20% ～ 80%
Dimensions in mm (W x H x D)	171.6 x 192.6 x 171.6 mm before packing 260 x 217 x 197 mm  after packing	171.6 x 192.6 x 171.6 mm before packing 260 x 217 x 197 mm  after packing
Dimensions in inches (W x H x D)	6.76 x 7.58 x 6.75 inches before packing 10.24 x 8.54 x 7.76 inches after packing	6.76 x 7.58 x 6.75 inches before packing 10.24 x 8.54 x 7.76 inches after packing
Net/Gross Weight	Net 1.35 kg | 2.98 lbs Gross 2.05 kg | 4.52 lbs	Net 1.35 kg | 3.15 lbs Gross 2.096 kg | 4.62 lbs



*Available in Black or White models.
