Vision+ N3 20x PTZ Camera

• 1080p60 FHD Resolution: Equipped with premium image processing solution and Sony CMOS sensor, Vision+ N3 delivers FHD and crystal-clear images even in low-light working environments.

• NDI®HX3 Support: With NDI®HX3 certification, Vision+ N3 series provide superior video quality with minimal latency, ensuring smooth and professional live productions.

• High-Speed 12G-SDI: Capable of transmitting 4K video at 60 frames per second over a single cable, ensuring uncompressed, high-quality video output with minimal latency

• NDI®HX3/3G-SDI/HDMI/USB 2.0 Available:

  • In addition to NDI®HX3, Vision+ N3 simultaneously outputs images via 3G-SDI, HDMI

  • USB 2.0. 3G-SDI and HDMI are for transitional video production

  • USB output can function as a high-end webcam

• FreeD Integration: Enables precise transmission of Pan, Tilt, Zoom, and Focus (PTZF) data directly from the camera to tracking system.

• Built-in Tally: Vision+ N3 series features built-in tally lights that work with NDI. This intuitive feature receives signals directly from NDI, without the need for separate tally control systems.

• 3.5mm Stereo Line-in: Vision+ N3 features a 3.5mm stereo line-in audio interface, allowing for direct connection of external audio sources.

• 20X Optical Zoom: Vision+ N3 provides 20X optical zoom with a 60° FOV

• SSDP: This feature streamlines the process of finding your camera’s IP address, especially under multi-camera streaming, eliminating the need for complicated searches or additional tools.

• Native AI-Based Auto-Tracking:  Vision+ N3 features AI-based auto-tracking, automatically following subjects to enhance ease of use and capture the moments flawlessly

CAMERA		Part NO. TLC-300-IP-20(NDI)-AB
	Sensor	1/2.8 inch, 2.4MP CMOS sensor
	Zoom	20X optical zoom
	Lens	f=4.9~98mm, F1.5~F3
	Viewing Angle	Horizontal: 60°(Wide)~3.2°(Tele) Vertical: 32.2°~1.8° Diagonal: 60°~3.64°
	Min. Working Distance	1.0m
	S/N Ratio	≥50dB
PAN/TILT
	Preset	Remote controller: 10 Serial port: 256 Accuracy：0.1°
	Rotation Angle	Pan: -170°~+170° Tilt: -30°~+90°
	Rotation Speed	Pan: 0.1°~120°/s Tilt: 0.1°~80°/s
IP STREAMING
	Video Encoding	H.264/H.265
	Bitrate Control	Variable bitrate (VBR), Constant bitrate (CBR)
	Bitrate Range	1024Kbps~122800Kbps
	Network Port Speed	1000M
	Protocol	NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC
VIDEO FORMAT
	HDMI	1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
	NDl®HX3	Main Stream: 1920*1080@15~60 1280*720@15~60 1024*576@15~60 Sub Stream: 640*360@15~30
	3G-SDI	1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94 1280*720P60/50/30/25/59.94/29.97
	USB-C	NV12: 1920*1080p5 1280*720p15 1024*576P25 800*448P30 YUYV: 1920*1080p5 1280*720pl0 1024*576P15 800*448P30 MJPG: 1920*1080P30 1280*720P30 1024*576P30 800*448P30 H264/HEVC: 1920*1080P30 1280*720P30 1024*576P30 800*448P30

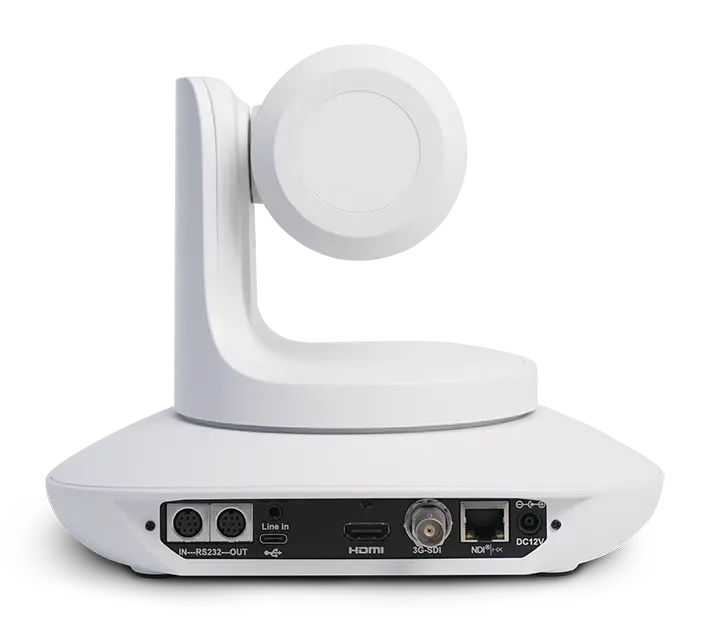

I/O INTERFACE
	Control Port	RS232(RS485), NDI®HX3
	Video Port	NDI®HX3, HDMI, 3G-SDl, USB Type-C
	Audio Port	3.5mm linear inputs
	Tally	Supported
	PoE++	Supported
	Daisy Chain	Supported
GENERAL
	Input Voltage	DC12V, POE+(IEEE802.3at)
	Operating Temperature	°F: 14 ~ 122 °C: -10 ~ 50
	Operating Humidity	≤ 80%
	Dimensions	inches: 8.66 x 7.48 x 6.81 mm: 220 ×190×173
	Net Weight	lbs: 3.3 kg: 1.5
	Color	Black, White



For additional information on the Vision+N3 PTZ camera, visit telycam.com
