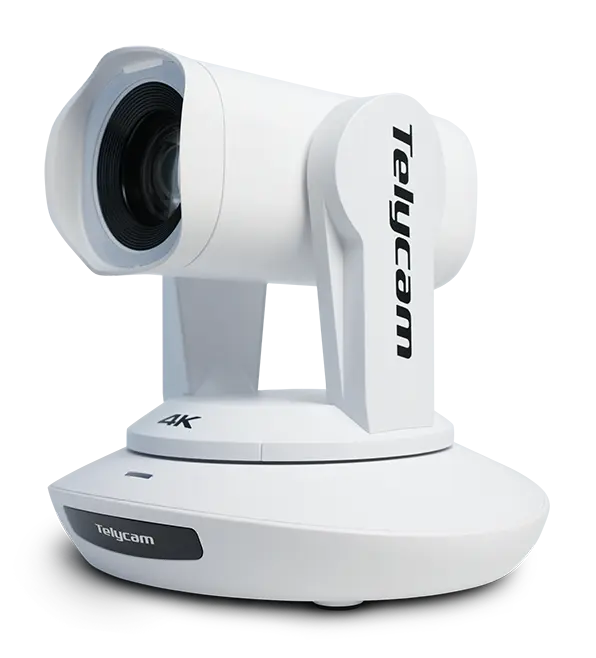

Vision+ 4KN 20x PTZ Camera

• 4K UHD Resolution: Vision+ 4KN outputs 4Kp60/59.94 video for clear, sharp, lifelike images even in low-light environments.

• NDI®HX3/3G-SDI/HDMI/USB 2.0 Available: Vision+ 4KN series supports NDI®HX and HDMI2.0 outputs at 4Kp60/59.94 simultaneously.

  • 3G-SDI(Level A and B) outputs 1080p60/59.94

  • USB-C output up to 4K30

  • USB and NDI cannot output simultaneously

• FreeD Integration: Enables precise transmission of Pan, Tilt, Zoom, and Focus (PTZF) data directly from the camera to tracking system.

• Built-in Tally: Vision+ 4KN series features built-in tally lights that work with NDI. This intuitive feature receives signals directly from NDI, without the need for separate tally control systems.

• 3.5mm Stereo Line-in: Vision+ 4KN features a 3.5mm stereo line-in audio interface, allowing for direct connection of external audio sources.

• 20X Optical Zoom: Vision+ 4KN 20X provides 20X optical zoom with a 61° FOV

• SSDP: This feature streamlines the process of finding your camera’s IP address, especially under multi-camera streaming, eliminating the need for complicated searches or additional tools.

• Native AI-Based Auto-Tracking:  Vision+ 4KN series features AI-based auto-tracking, automatically following subjects to enhance ease of use and capture the moments flawlessly

CAMERA		Part NO. TLC-700-IP-20-4K(NDI)-AB
	Sensor	1/1.8 inch,9MP UHD CMOS sensor
	Zoom	20X optical zoom
	Lens	f=6.25mm~112.5 mm, F1.58~F3.95
	Viewing Angle	Horizontal: 61°(Wide)~3.5°(Tele) Vertical: 34.1°~1.9° Diagonal: 60.7°~3.5°
	Min. Working Distance	1.0m
	S/N Ratio	≥50dB
PAN/TILT
	Preset	Remote controller: 10 Serial port: 256 Accuracy：0.1°
	Rotation Angle	Pan: -176°~+176° Tilt: -30°~+90°
	Rotation Speed	Pan: 0.1°~80°/s Tilt: 0.1°~60°/s
IP STREAMING
	Video Encoding	H.264/H.265
	Bitrate Control	Variable bitrate (VBR), Constant bitrate (CBR)
	Bitrate Range	1024Kbps~122800Kbps
	Network Port Speed	1000M
	Protocol	NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC
VIDEO FORMAT
	HDMI2.0	3840*2160P60/59.94/50/30/29.97/25 1920*1080P60/59.94/50/30/29.97/25/24/23.98 1920*1080I60/59.94/50 1280*720P60/59.94/50/30/29.97/25
	NDl®HX3	Main Stream: 3840*2160P15~60 1920*1080P15~60 1280*720P15~60 1024*576P15~60 Sub Stream: 640*360P15~30
	3G-SDI	1920*1080P60/59.94/50/30/29.97/25/24/23.98   1920*1080I60/59.94/50   1280*720P60/59.94/50/30/29.97/25
	USB-C	NV12: 1920*1080p5 1280*720p15 1024*576P25 800*448P30 YUYV: 1920*1080P5 1280*720P15 1024*576P25 800*448P30 MJPG: 3840*2160P30 1920*1080P60 1280*720P60 1024*576P60 800*448P60 H264/H265: 3840*2160P30 1920*1080P60 1280*720P60 1024*576P60 800*448P60
I/O INTERFACE
	Control Port	RS232(RS485), NDI®HX3
	Video Port	Video Port: NDI®HX3, HDMI 2.0, 3G-SDl, USB Type-C
	Audio Port	3.5mm linear inputs
	Tally	Supported
	PoE++	Supported
	Daisy Chain	Supported
GENERAL
	Input Voltage	DC12V, POE+(IEEE802.3at)
	Operating Temperature	°F: 14 ~ 122 °C: -10 ~ 50
	Operating Humidity	≤ 80%
	Dimensions	inches: 8.66 x 7.48 x 7.62 mm: 220 ×190×193.5
	Net Weight	lbs: 4.2 kg: 1.9
	Color	Black, White



For additional information on the Vision+ 4KN PTZ camera series, visit telycam.com
