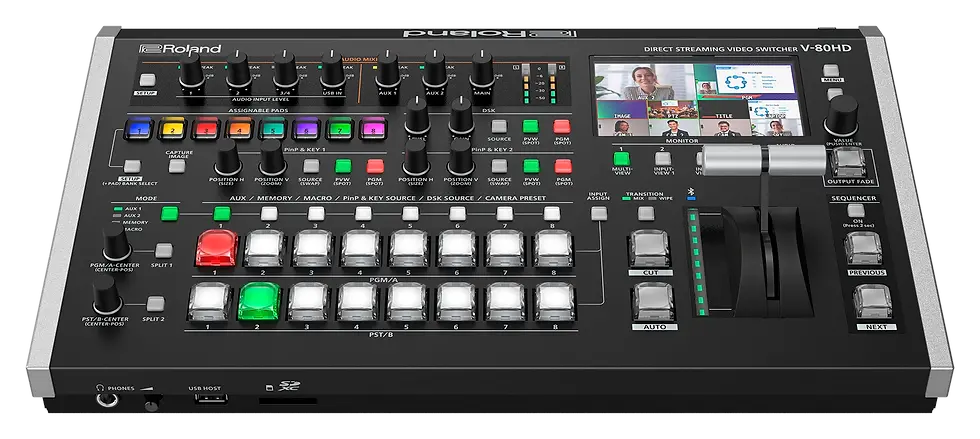

Roland V-80HD Direct Streaming Video Switcher: Angled view

V-80HD Video Switcher

Roland continues to impress with their no frills, reliable switchers. While these aren’t all-in-one systems, they are great at what they do and are matched perfectly with complementary components to create simple and reliable workflows. Roland brings smart switching and a feature-rich experience to its users.

Compact and powerful, the V-80HD covers professional video production needs for in-person events, livestreaming, studio productions, and other applications. The all-in-one design is easy to carry and set up, while flexible I/O features support 3G SDI, HDMI, USB 3.0, and LAN (RTMP/SRT) connections. The V-80HD also includes multi-channel audio mixing and effects, integrated control for PTZ cameras, and remote operation with video monitoring via dedicated control apps. And with the companion Graphics Presenter software, you can easily enhance productions with impressive titles, motion graphics, and more.
    • Professional eight-channel switcher with a compact footprint and comprehensive features
    • Supports a variety of applications, including in-person events, conferences, web streaming, houses of worship, and studio production setups
    • Four 3G SDI inputs with frame rate converters
    • Four 1080p HDMI inputs, including two 4K inputs with HD downscalers and through outputs
    • Seven total outputs include SDI, HDMI, USB-C streaming, and LAN (RTMP/SRT)
    • Two 3G SDI and three HDMI outputs plus 10 assignable buses
    • 28-channel digital audio mixer and three output buses with effects and processing
    • Five-layer video effects engine, including two PinP windows with key composition and DSK
    • Easily create stunning titles and motion graphics with the companion Graphics Presenter software for Windows
    • 32-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
    • Powerful live production automation with sequencing, macros, and scene memories
    • Integrated PTZ camera control with simultaneous support for multiple brands and mixed protocols
    • Eight assignable pads for controlling up to 64 discreet functions
    • Extensive device control with Bluetooth, USB, RS-232, and LAN
    • Wireless and wired camera tally support
    • Remote control software available for iPad, macOS, and Windows
  • VIDEO
    Video Processing 4:2:2 (Y/Pb/Pr), 8-bit
    # Video Channels 8
    Input formats HDMI IN 1--4
    480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p,
    576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p,
    1080/23.98p, 1080/24p,
    2160/59.94p, 2160/60p, 2160/29.97p, 2160/30p *1
    2160/50p, 2160/25p *1
    2160/23.98p, 2160/24p *1
    VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
    WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
    FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
    UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
    * The refresh rate is the maximum value of each resolution.
    * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
    * 1920 x 1200/60 Hz: Reduced blanking
    * The input interlaced video signal is converted to progressive video signal by internal processing.
    * The input refresh rates of SVGA (800 x 600)--SXGA+ (1400 x 1050) are 75 Hz when the unit's frame rate setting is 50 Hz.
    * HDMI IN 1 support Roland FILL+KEY signal
    *1 Only for HDMI IN 3, 4

    SDI IN 1--4
    720/59.94p *1, *3
    720/50p *1, *4
    1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
    1080/50i, 1080/50p, 1080/25p *2, *4
    1080/23.98p, 1080/24p *2
    * The input interlaced video signal is converted to progressive video signal by internal processing.
    *1 System Format = 720p
    *2 System Format = 1080p
    *3 Frame Rate = 29.97 Hz, 30 Hz, 59.94 Hz, 60 Hz
    *4 Frame Rate = 25 Hz, 50 Hz
    Output Formats HDMI OUT 1--3, SDI OUT 1--2:
    720/59.94p *1, *3
    720/60p *1, *4
    720/50p *1, *7
    1080/59.94i *1, *3
    1080/60i *1, *4
    1080/50i *1, *7
    1080/59.94p *2, *3
    1080/60p *2, *4
    1080/29.97p *2, *5
    1080/30p *2, *6
    1080/50p *2, *7
    1080/25p *2, *8
    1080/23.98p *2, *9
    1080/24p *2, *10
    *1 System Format = 720p
    *2 System Format = 1080p
    *3 Frame Rate = 59.94 Hz
    *4 Frame Rate = 60 Hz
    *5 Frame Rate = 29.97 Hz
    *6 Frame Rate = 30 Hz
    *7 Frame Rate = 50 Hz
    *8 Frame Rate = 25 Hz
    *9 Frame Rate = 23.98 Hz
    *10 Frame Rate = 24 Hz

    USB STREAM:
    1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
    1080/60p, 720/60p, 640 x 480/60p *2
    1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
    1080/30p, 720/30p, 640 x 480/30p *4
    1080/50p, 720/50p, 640 x 480/50p *5
    1080/25p, 720/25p､640 x 480/25p *6
    1080/23.98p, 720/23.98p､640 x 480/23.98p *7
    1080/24p, 720/24p､640 x 480/24p *8
    * Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
    *1 Frame Rate(USB Out) = 59.94 Hz
    *2 Frame Rate(USB Out) = 60 Hz
    *3 Frame Rate(USB Out) = 29.97 Hz
    *4 Frame Rate(USB Out) = 30 Hz
    *5 Frame Rate(USB Out) = 50 Hz
    *6 Frame Rate(USB Out) = 25 Hz
    *7 Frame Rate(USB Out) = 23.98 Hz
    *8 Frame Rate(USB Out) = 24 Hz

    DIRECT STREAM:
    720/59.94p *1, *3
    720/60p *1, *4
    720/29.97p *1, *5
    720/30p *1, *6
    720/50p *1, *7
    720/25p *1, *8
    1080/59.94p *2, *3
    1080/60p *2, *4
    1080/29.97p *2, *5
    1080/30p *2, *6
    1080/50p *2, *7
    1080/25p *2, *8
    1080/23.98p *2, *9
    1080/24p *2, *10
    *1 System Format = 720p
    *2 System Format = 1080p
    *3 Frame Rate (Stream&Record) = 59.94 Hz
    *4 Frame Rate (Stream&Record) = 60 Hz
    *5 Frame Rate (Stream&Record) = 29.97 Hz
    *6 Frame Rate (Stream&Record) = 30 Hz
    *7 Frame Rate (Stream&Record) = 50 Hz
    *8 Frame Rate (Stream&Record) = 25 Hz
    *9 Frame Rate (Stream&Record) = 23.98 Hz
    *10 Frame Rate (Stream&Record) = 24 Hz
    Video Effects Transition: Cut, Mix (Dissolve/FAM/NAM), WIPE (8 types), SPLIT (2 types)
    Composition: PinP x 2 (Square, Circle, Diamond), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key, Alpha Key, External Key), Roland FILL+KEY Mode
    Other: Multi-View (4 types), Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade (Audio, Video: White or Black), Test pattern output, Stream Delay
    AUDIO
    Audio Processing Sampling rate: 24 bits/48 kHz
    # Audio Channels 28
    Audio Formats USB STREAM (input/output): Linear PCM, 16 bits, 48 kHz, 2 ch
    Bluetooth (input): Linear PCM, 16 bits, 48 kHz, 2 ch
    HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch
    HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch
    SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M)
    SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M)
    Audio Player File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo)
    * It can be stored up to 64 tracks in the internal memory.
    Audio Effects Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing
    Master Effects: Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay
    Other: Output fade, Test tone output
    Input Level AUDIO IN 1, 4: -64--+4 dBu (Maximum: +24 dBu)
    AUDIO IN 3L, 4/R: -10 dBu (Maximum: +10 dBu)
    Input Impedance AUDIO IN 1, 2: 8.4 k ohms
    AUDIO IN 3/L, 4/R: 10 k ohms
    Output Level AUDIO OUT 1, 2: +4 dBu (Maximum: +24 dBu)
    PHONES: 92 mW + 92 mW (32 ohms)
    Output Impedance AUDIO OUT 1, 2: 600 ohms
    PHONES: 33 ohms
    OTHERS
    Bluetooth Ver 5.0
    Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
    Codec: SBC (Support to the content protection of the SCMS-T method)
    Display 4.3 inches TFT Color LCD: 480 x 272 dots
    Power Supply AC Adaptor
    Current Draw 2.1 A
    Power Consumption 51 W
    Operation Temperature +0 to +40 degrees Celsius
    +32 to +104 degrees Fahrenheit
    Dimensions 396 (W) x 254 (D) x 103 (H) mm
    15 5/8 (W) x 10 (D) x 4-1/16 (H) inches
    Weight (excluding AC adaptor) 3.5 kg
    7 lbs 12 oz
    Accessories Startup Guide
    Leaflet "USING THE UNIT SAFELY"
    AC adaptor
    Power cord

    Visit Roland to view the technical specifications in full.



    * 0 dBu = 0.775 Vrms
    * This product is a Class A digital device under FCC part 15.
