V-1SDI: 3G-SDI VIDEO SWITCHER

V-1SDI Compact Video Switcher

Roland V-1SDI Compact, Portable Video Switcher

Flexible and versatile, the Roland V-1SDI makes switching 3G SDI and HDMI cameras and sources easy and affordable. Compact and portable, the V-1SDI comes complete with a T-Fader, backlit buttons, and delivers professional switching results. With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance runs associated with SDI.
    • Support for SDI and HDMI cameras, smartphones, tablet computers and PCs etc.
    • Easy to operate with hardware controls
    • Compact size
    • PSB-7U, provided AC adaptor or Battery operation Battery information
    • Supports up to Full HD 1080p
    • Three (3) x 3G-SDI and 2 x HDMI*1 inputs
    • Two (2) x 3G-SDI and 1 x HDMI*1 output
    • Input 4’s scaler now supports a wider range of video and VESA resolutions.*1 *2
    • Quad input multi-viewer with source labelling and audio metering
    • Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
    • Capturing a still Image from Input Video on channel 4*3 [Ver.1.5]
    • Full 14-channel audio mixer included
    • Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection

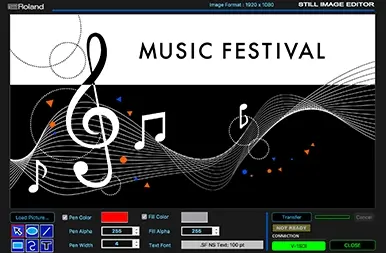

    • Sending a still image to the V-1SDI by V-1SDI RCS*3 [Ver.1.5]



    *1 HDCP Compliant
    *2 Built-in EDID Emulator
    *3 The Still-image data is deleted once the power is turned off.

  • VIDEO
    Video Processing 4:2:2 (Y/Pb/Pr), 8-bit
    Input Connectors
    SDI INPUT 1--3: BNC x 3
    * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
    HDMI INPUT 3--4: Type A (19 pins) x 2
    * HDCP Supported
    * INPUT 3: SDI or HDMI selected.
    Output Connectors SDI OUT PGM: BNC x 1
    SDI OUT PVW: BNC x 1
    * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
    HDMI OUT MULTI-VIEW: Type A (19 pins) x 1
    * HDCP Supported
    Input formats SDI INPUT 1-3 Conforms to SMPTE 296M, SMPTE 274M
    HDMI INPUT 3
    720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
    1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p)
    * The input interlaced video signal is converted to progressive video signal by internal processing.
    * The video signal frame rate can be selected at the SETUP menu (59.94 or 50).

    HDMI INPUT 4
    480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p

    VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)

    WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)

    FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)

    UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
    * The refresh rate is the maximum value of each resolution.
    * Conforms to VESA DMT Version 1.0 Revision 11.
    * 1920 x 1200/60 Hz: Reduced blanking.
    * The input interlaced video signal is converted to progressive video signal by internal processing.
    * The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
    Output Formats SDI OUT(PGM/PVW) Conforms to SMPTE 296M, 274M
    HDMI OUT MULTI-VIEW
    720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
    1080/59.94i, 1080/50i SMPTE 274M(FORMAT switch = 1080i)
    1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080p)
    * The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
    Video Effects Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types)
    Composition: PinP, SPLIT, QUAD, DSK (Luminance Key, Chroma Key)

    AUDIO
    Audio Processing Sampling rate: 24 bits/48 kHz
    Audio Formats SDI: Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M
    HDMI: Linear PCM, 24 bits/48 kHz, 2ch
    Input Connectors Digital: SDI INPUT 1--3 (BNC) x 3 SMPTE 299M
    HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2

    Analog: AUDIO IN (RCA phono type)
    MIC (Stereo mini type, plug-in power supported)
    Output Connectors Digital: SDI OUT PGM: BNC x 1 SMPTE 299M
    SDI OUT PVW: BNC x 1 SMPTE 299M
    HDMI OUT MULTI-VIEW: Type A (19 pins) x 1

    Analog: AUDIO OUT (RCA phono type)
    PHONES (Stereo mini type)
    Input Level AUDIO IN: -10 dBu (Maximum: +8 dBu)
    MIC: -41-- -13 dBu (Maximum: -1 dBu)
    Input Impedance AUDIO IN: 15 k ohms
    MIC: 10 k ohms
    Output Level AUDIO OUT: -10 dBu (Maximum: +8 dBu)
    PHONES: 92 mW + 92 mW (32 ohms)
    Output Impedance AUDIO OUT: 1 k ohm
    PHONES: 10 ohms
    Audio Effects EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect

    OTHERS
    Other Connectors USB: B Type (for remote control from PC)
    RS-232: DB-9 type
    Other Functions MEMORY (8 types)
    FREEZE (input video captured)
    OUTPUT FADE (Audio, Video: WHITE or BLACK)
    Power Supply AC Adaptor
    Current Draw 2.1 A
    Power Consumption 25.0 W
    Operation Temperature +0 to +40 degrees Celsius
    +32 to +104 degrees Fahrenheit

    PHYSICAL
    Dimensions 313 (W) x 108 (D) x 59 (H) mm
    12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inches
    Weight (excluding AC adaptor) 1.2 kg
    2 lbs 10-2/5 oz
    Accessories Owner's manual
    AC adaptor
    Power cord
    Cord hook



    * 0 dBu=0.775 Vrms

    All specifications and appearances are subject to change.
