Transit Pro E 5G Mobile Router

• 1 Gbps Throughput
• SIMS:
  • Physical SIM
  • Peplink eSIM
  • Remot SIM
  • BYO eSIM
• PoE: PoE + (802.3at)output power up to 30 W

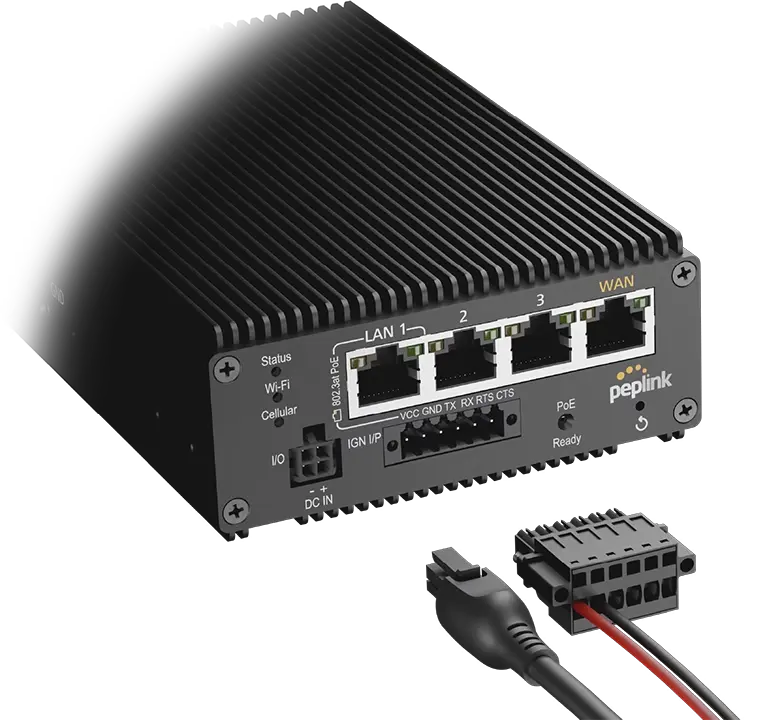

• Flexible Powering Options:
  • 12-56V DC via power port or
  • Terminal block (included 100-240V AC adapter)
• Rugged Design: Rugged metal and ventless design case
• Widest Operating Temperature Range:
  • °C: -40 - 70
  • °F: -40 - 158
• Remote Mangement: Remotely manage external devices(via InControl IP or Serial)
• Built-In Edge Computing:
  • Run third-party containerized software without additional hardware. With edge computing Docker and other applications , the possibilities are endless!
  • Data Processing: Deploy custom code, open source software or data caching for offline or limted connectivity deployments
• Emergency Response Mobility:
  • Built-in GPS and Dead Reckoning position tracking
  • Supports secondary internet such as Starlink
• Built-in WIFI 6:
  • Reliable Connectivity through the mobile environment
    • 2.4 Ghz
    • 5 Ghz
  • Supports up to 150 users
  • Supports vehicle-as-a-Node applications

	Transit Pro E 5G Mobile Router with Edge Compute Engin
Software	Pepwave MAX Firmware
WAN	Support for PPPoE, Static IP, DHCP WAN Link Health Check Bandwidth Allowance Monitor Support for Dynamic DNS services
LAN	DHCP Server for LAN Clients Extended DHCP Option DHCP Reservation DNS Proxy for LAN Clients VLAN on LAN Support
Load Balancing	Multiple Outbound Policy Algorithms • Weighted Balance • Priority • Overflow • Persistence • Least Used • Lowest Latency • Enforced • Fastest Response Time
Complete VPN Solution	SpeedFusion VPN • Site-to-Site VPN • 256-bit AES Encryption • Pre-shared Key Authentication • Dynamic Routing X.509 Certificate Support IPsec VPN (Network-to-Network) ^ Remote User Access (PPTP/L2TP/OpenVPN)
Networking	NAT and IP Forwarding Static Routes Port Forwarding Many to One, One to One NAT NAT Pool SIP ALG, H.323 ALG UPnP, NAT-PMP
Security	Stateful Firewall DoS Prevention Web Blocking
Advanced QoS	Individual Bandwidth Limit Application Prioritization • SIP, HTTPS, VPN QoS • Custom Application QoS
AP Controller	Support for Peplink AP Series Auto AP Discovery Auto AP Firmware Management AP Profile Configuration Wi-Fi Usage Statistics
Global Positioning System	Integrated GPS Device Location Map with InControl 2 Location Tracking Data with InControl 2 Fleet Management with InControl 2
Captive Portal Support	Support for Wired LAN clients Support RADIUS Authentication Time and Usage Quotas on Open Access Mode Built-in Customizable Splash Page
Device Management	Web Administrative Interface Command Line Interface InControl 2 Cloud Management Email Notification Active Client & Session Lists Bandwidth Usage Statistics Syslog Service SNMP v1, v2c and v3



Visit Peplink to learn more about the MAX Transit Duo Pro.

• 1x Transit Pro E
• 4x 5G/LTE Antennas (ACW-235)
• 2x Dual Band Wi-Fi Antennas (ACW-815)
• 1x GPS Active Antenna (ACW-232)
• 1x 12V 2A 4 Pin Power Supply (ACW-632)
• 1x 6 Pin Terminal Block Connector (ACW-131)
• 1 Pair of Mounting Brackets (ACW-724)
