7-inch HDR pro / cinema monitor-recorder-switcher

Shogun Classic Monitor-Recorder

ATOMOS Shogun Classic Monitor-Recorder

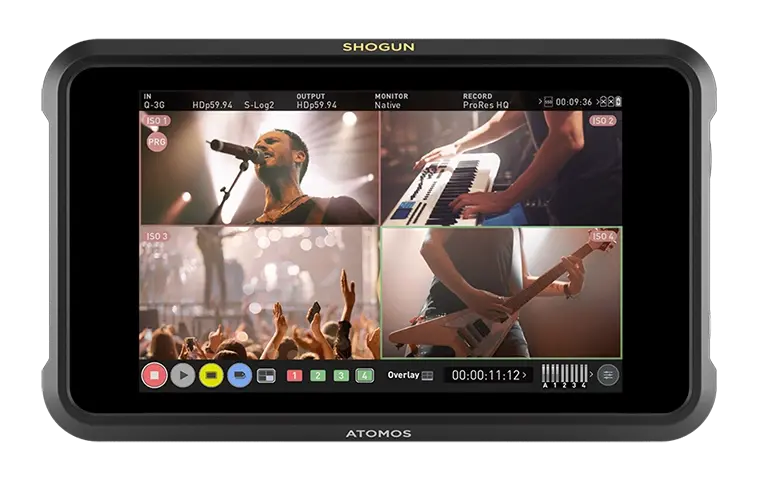

Shogun Classic, the versatile seven-inch HDR pro monitor-recorder-switcher enables you to monitor, record, and switch all in one device. It’s the perfect tool for live production, multi-camera shoots, and in-the-field event coverage.

Designed for professionals that push boundaries with the quality of their videos, this 7-inch monitor-recorder-switcher enhances the image captured by any HDMI or SDI camera to new levels. With 1,000,000:1 contrast ratio and peak brightness of 3000nits, Shogun Classic is the ultimate all-rounder production tool.

Shogun Classic gives you the high production values of 4K HDR, and complete control of every aspect of your production, on-set and in post. Meticulously monitor every pixel of SDR or HDR as it’s captured and view it in glorious 10-bit HDR.

  •

    • 3000nit HDR Screen: Zone backlight provides exceptional detail, color, and contrast.
    • High Performance HDR: Preview your images in glorious 10-bit HDR
    • 4 x ISO Recording: For individual input control and post-production flexibility
    • Real-Time 4K Recording:
      • In ProRes
      • Avid DNx formats
    • XLR Audio: Two-channel XLR Input and output
  • PHYSICAL

    Dimensions

    (W x H x D)

    mm: 214mm x 127mm x 45mm

    inches: 8.43” x 5.00” x 1.77”
    Weight 738g / 26oz
    Mounting Points 1/4”-20 screw mount. 1x top and 1x bottom
    ENVIRONMENTAL
    Ambient Operating Temperature

    °C: Up to 40

    °F: Up to 104
    CONSTRUCTION
    Body Glass fiber reinforced polycarbonate
    Cooling Heat Sink + Actively controlled Fan
    Touch Screen Capacitive Touch
    POWER
    Input Voltage 6.2V to 16.8V
    Compatible Batteries 2x NP-F / L-Series batteries and supporting accessories
    DC in Connector 1 x DC in (6.2 - 16.8V)
    DISPLAY
    Display Panel IPS panel (capacitive touch)
    Size 7.2"
    Resolution 1920 x 1200 (1920 x 1080 Image Display)
    PPI 325
    Bit Depth 10-Bit (8+2 FRC)
    Backlight Type Zone Backlight (Full-Array Local Dimming)
    Brightness (cd/m² / nits) 3000nit (+/- 10%)
    Aspect Ratio 16:10 native resolution 1920 x 1200
    Color Gamut Up to Wide color gamut (105% DCI-P3)
    Calibration Support ATOMOS Calibrator with Display Pro HL and Display Plus HL
    VIDEO INPUT
    HDMI HDMI 1 x HDMI (2.0)
    SDI Quad-Link 3G SDI with 2 x 12G SDI (backwards compatible)
    Bit Depth 8/10-Bit for Video
    Video Chroma Subsampling YCbCr 4:2:0 & 4:2:2
    HDR HDMI Auto Detection
    VIDEO OUTPUT
    HDMI 1 x HDMI (2.0)
    SDI Loop / Play Out 2 x 12G SDI (backwards compatible)
    HDR Yes with auto detection
    VIDEO SIGNAL CONVERSION
    HDMI to SDI Supported
    SDI to HDMI Supported



    Visit ATOMOS to view the technical specs in full.
