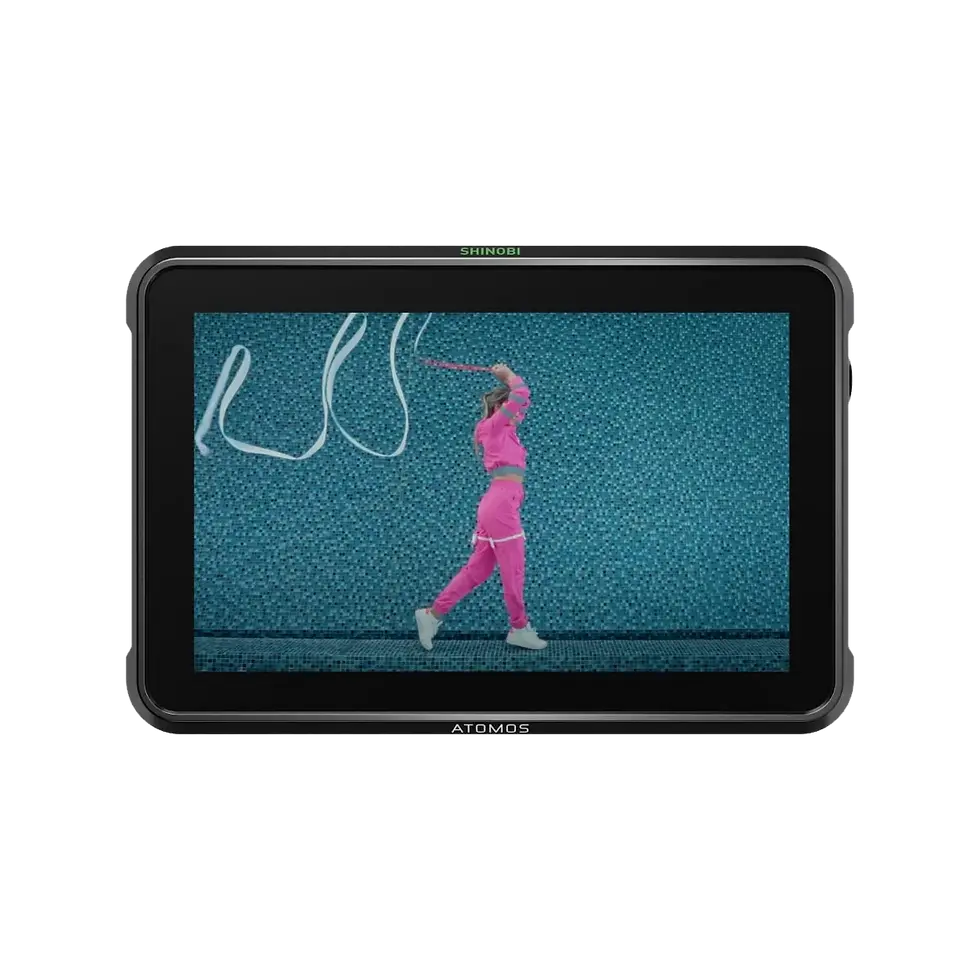

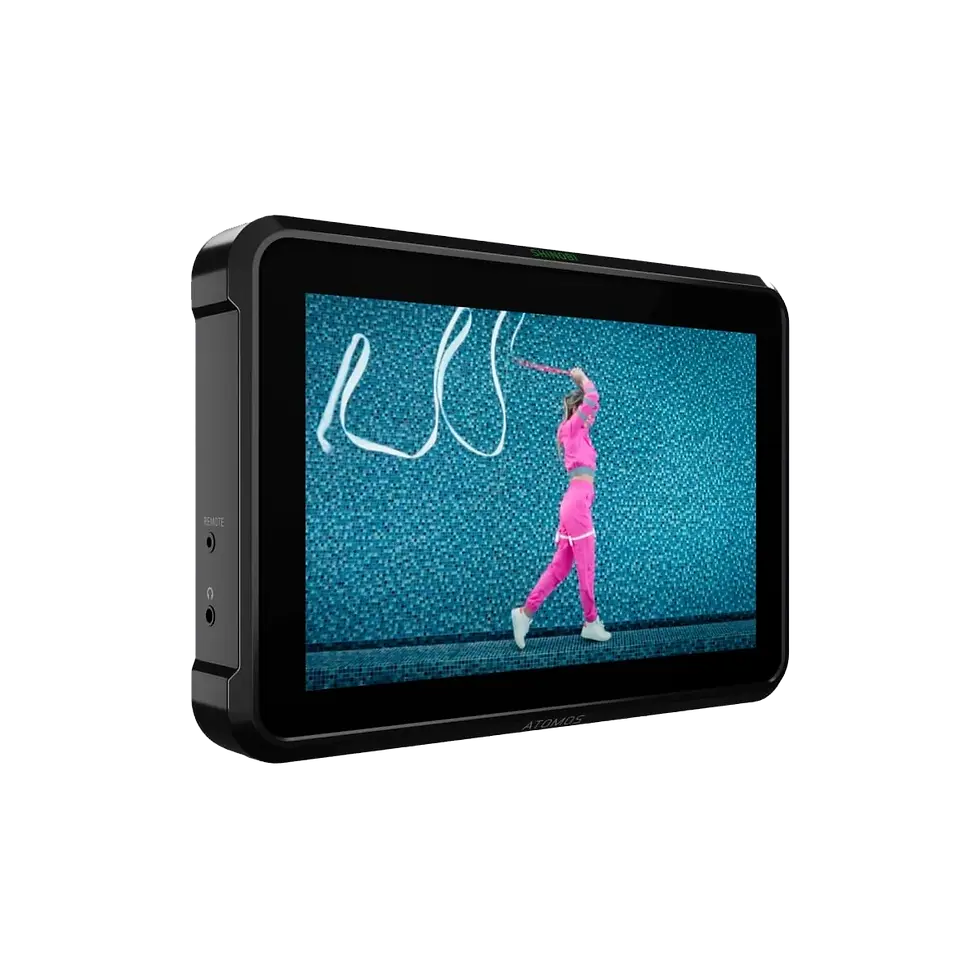

Shinobi 7 On-Camera Monitor

ATOMOS Shinobi 7: Big. Bright. Beautiful.

Shinobi 7 combines a stunning 7-inch HDR screen with a calibrated peak brightness of 2200 nits and all the professional monitoring goodness of the HDMI Shinobi.

Ready for the Big Screen

Large-screen TVs and cinema displays show films in glorious detail. Full-frame camera sensors capture more information than ever before – often with extremely narrow depth of field. So there’s never been a better time to upgrade your on-camera monitoring so you can confidently capture video that’s perfect for appreciative audiences. Take visual control over composition, focus, exposure and HDR settings by putting a big screen on your camera.
    • Ituitive Camera Control: Easy touchscreen access to essential camera features. Which brands?
      • Canon
      • Fujifilm
      • Nikon
      • Olympus
      • Panasonic
      • Sony
      • Z Cam E2 (via the optional USB-C to serial cable)
    • Continuous Power: Dual battery slots
    • Brightest and Best: Calibrated peak brightness of 2200nits
    • Up to 4K Monitoring: Monitor signals up to 4Kp60 via HDMI or 2Kp60 via 3G-SDI
    • Future Proofing: Add updates and new features via USB or RJ45 ports
    • 10+ stops of dynamic range in real-time from Log/PQ/HLG input
    • Built-In LUT: Built-in 3D LUT and dual NPF battery slots
  • PHYSICAL

    Dimensions

    (W x H x D)

    mm: 198 mm x 133 mm x 39 mm

    inches: 7.8" x 5.2" x 1.8"
    Weight 577g / 1.04oz
    Mounting Points



    Top: 1 x 1/4"20 with anti rotational points

    Bottom: 1 x 1/4"20 with anti rotational points
    ENVIRONMENTAL
    Ambient Operating Temperature

    °C: Up to 40

    °F: Up to 104
    CONSTRUCTION
    Body ABS Polycarbonate Plastic
    Cooling Heat Sink + Actively controlled Fan
    Touch Screen Capacitive Touch
    POWER
    Input Voltage 6.2V to 16.8V
    Compatible Batteries 2 x NP-F / L-Series
    DC in Connector Locking DC Jack (5.5mm OD & 2.1mm ID)
    DISPLAY
    Display Panel SuperAtom IPS Panel (Capacitive Touch)
    Size 7"
    Resolution 1920 x 1200 (1920 x 1080 Image Display)
    PPI 325
    Bit Depth 10-Bit (8+2 FRC)
    Backlight Type Edge-Lit
    Brightness (cd/m² / nits)
    2200 +/- 10%
    Aspect Ratio 16:10 (16:9 Image Display)
    Color Gamut Rec.709
    Calibration Support ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
    VIDEO INPUT
    HDMI/SDI

    1 x HDMI 2.0



    1 x 3G SDI
    Bit Depth 8/10-Bit
    Chroma Subsampling YCbCr 4:2:0 & 4:2:2
    AUDIO IN/OUT
    HDMI/SDI Embedded

    HDMI: 2ch 24-Bit, Input dependent

    SDI: 8ch 24-Bit, Input dependent
    Headphone Out 3.5mm headphone jack
    EXTERNAL DEVICE CONTROL
    Serial 2.5mm Jack



    Z CAM Camera Control via Remote to USB-C Cable



    Visit ATOMOS to view the technical specs in full.
