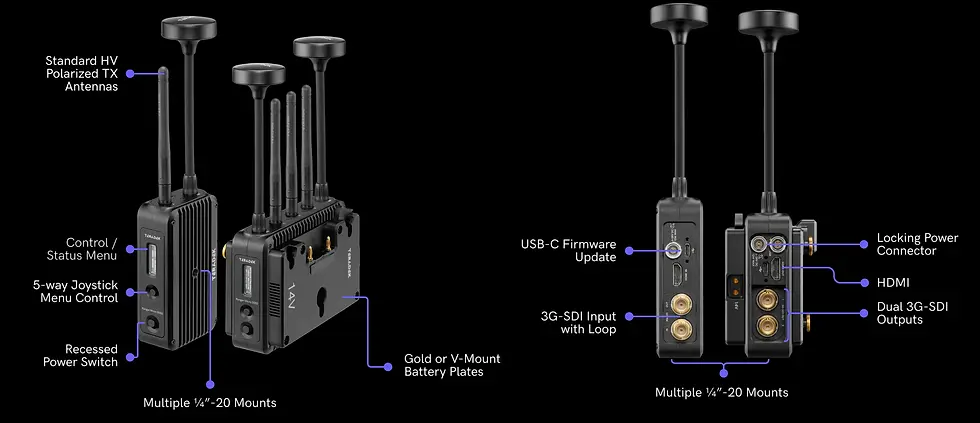

Ranger Micro

Ranger: Next-Level Wireless Performance

Teradek's Ranger is the world’s first zero-delay (< 1 ms) wireless video system to transmit uncompressed 4K HDR video up to 5,000 ft. line of sight. Ranger offers live productions the combination of incredible video quality AND wireless integrity.
    • Multicast-capable: Up to six (6) receivers

    • Secure video transmission: AES-256 encryption

    • Visually-lossless HDR

    • Granular frequency control

    • Licensed & unlicensed frequencies: Operate from 4.9 GHz to 6.4 GHz

    • 5000 ft. wireless range

    • 10-Bit 4:2:2 Image Quality

    • Zero-delay (< 1 ms):  Go from TX to RX in .001 seconds

    • Intercompatibility: Pair any previous/current Ranger systems together
  •   Ranger Micro Transmitter Ranger Micro Receiver
    VIDEO
    Inputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1x HDMI 2.0 Type-A receptacle N/A
    Outputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle
    Resolutions

    1080p23.98/24/25/29.97/30/50/59.94/60

    1080psf23.98/24/25/29.97/30

    1080i50/59.94/60

    720p50/59.94/60

    480p50 576p59.94/60

    1080p23.98/24/25/29.97/30/50/59.94/60

    1080psf23.98/24/25/29.97/30

    1080i50/59.94/60

    720p50/59.94/60

    480p50 576p59.94/60
    Color Sampling

    SDI: YCbCr 4:2:2, 10-bit

    HDMI: RGB 4:4:4, 8-bit | YCbCr 4:2:2, 10-bit

    SDI: YCbCr 4:2:2, 10-bit

    HDMI: RGB 4:4:4, 8-bit | YCbCr 4:2:2, 10-bit
    Delay (TX to RX) <0.001sec (without format conversions) <0.001sec (without format conversions)
    Input Cross Conversions Yes, HDMI to SDI N/A
    Output Video Scaling N/A Yes, Framerate and Resolution Scaling
    VIDEO PROCESSING
    Compression Uncompressed Uncompressed
    Test Pattern Generator N/A Yes
    Video Format Conversion Support Yes Yes
    Spectrum Analyzer Yes (via Launchpad App) Yes
    AUDIO
    Compression 48kHz 24-bit PCM 48kHz 24-bit PCM
    Input Embedded SDI/HDMI Audio Input (2 channel) N/A
    Output N/A Embedded SDI/HDMI Audio Output (2 channel)
    PHYSICAL ATTRIBUTES
    Dimensions (w x d x h)

    Inches: 2.4 x 4.1 x 1.3

    mm: 60 x 103 x 33

    inches: 4.8 x 3.7 x 1.0

    mm: 122 x 94 x 27
    Weight

    lbs: .45 (7.3 oz)

    grams: 206

    lbs: .64 (10.3 oz)

    grams: 292
    Construction Milled aluminum (chassis), regulation-compliant PCB Milled aluminum (chassis), regulation-compliant PCB
    INTERFACES
    Configuration OSD Screen with Menu Joystick Navigation OSD Screen with Menu Joystick Navigation
    Switches On/Off Switch On/Off Switch
    Desktop App Launchpad application for OSX & Windows Launchpad application for OSX & Windows
    Mobile App

    Launchpad app (iOS and Android) configuration via Bluetooth

    Launchpad app (iOS and Android) configuration via Bluetooth
    USB Upgrade via USB-C Upgrade via USB-C
    Bluetooth Bluetooth 5 LE Bluetooth 5 LE
    NETWORK
    Wireless

    Licensed Frequencies*: 4.850 ~ 5.150 GHz

    5.350 ~ 5.470 GHz

    5.850 ~ 5.925 GHz

    Unlicensed Frequencies: 5.150 ~ 5.250 GHz (Non-DFS)

    5.250 ~ 5.350 GHz

    (DFS) 5.470 ~ 5.725 GHz (DFS)

    5.725 ~ 5.850 GHz (Non-DFS)

    5.725 ~ 5.850 GHz (Non-DFS)

    5.925 ~ 6.425 GHz

    Licensed Frequencies*: 4.850 ~ 5.150 GHz

    5.350 ~ 5.470 GHz

    5.850 ~ 5.925 GHz

    Unlicensed Frequencies: 5.150 ~ 5.250 GHz (Non-DFS)

    5.250 ~ 5.350 GHz

    (DFS) 5.470 ~ 5.725 GHz (DFS)

    5.725 ~ 5.850 GHz (Non-DFS)

    5.725 ~ 5.850 GHz (Non-DFS)

    5.925 ~ 6.425 GHz
    RF Channel Selection Auto, Manual (Manual available for non-DFS, DFS and Licensed Frequencies) Auto, Manual (Manual available for non-DFS, DFS and Licensed Frequencies)
    Encryption AES-256, RSA-1024 key exchange AES-256, RSA-1024 key exchange
    RF Power 23 dbm EIRP 21 dbm EIRP
    Antennas

    1x Horizontal N-Type 2dbi antenna

    1x Vertical N-Type 2dbi antenna

    		 5x External 2 dBi antennas (included)
    POWER
    Power Input 2-Pin Circular locking connector 6-28 VDC 2-Pin Circular locking connector 6-28 VDC
    Operating Temp. 0~40 deg-C 0~40 deg-C
    Nominal Power Consumption 9 Watts 11 Watts



    *By using this product in the licensed frequencies, you acknowledge and agree to comply with all applicable regulations and rules, and to only operate this system in compliance with the applicable license requirements.



    Visit Teradek to view the full specifications.
