AIDA PTZ4K12G-FNDI-X30 Black PTZ Camera: Front

PTZ4K12G-FNDI-X30 PTZ Camera

Demand Excellence in Your Video Production

The PTZ4K12G-FNDI-X30 – AIDA's finest PTZ, crafted with unwavering dedication and a singular focus on excellence. According to the manufacturer, this marvel transcends the ordinary, emerging as the undisputed PTZ champion on the battlefield of visual creation. With boundless potential and a plethora of features, it stands as a testament to our relentless pursuit of visual inspiration.

Why create such a camera, you might wonder? The answer lies in AIDA's commitment to revolutionizing the landscape of professional live streaming. The PTZ4K12G-FNDI-X30 isn’t just a tool; it’s a gateway to unparalleled creativity and unparalleled performance. Prepare to shatter the confines of conventional streaming and unlock a new era of excellence, all at an unmatched value.
    • The camera utilizes a 4K 9MP UHD Sony CMOS sensor, for enhanced digital imaging beyond, color capture, and realism.
    • Its workhorse reliability allows you to simultaneously stream out all sources at once.
    • Control via IR remote, Web UI, or HTTP access for full control over the PTZ.
    • Beefy design for heating, aesthetics, and durability.

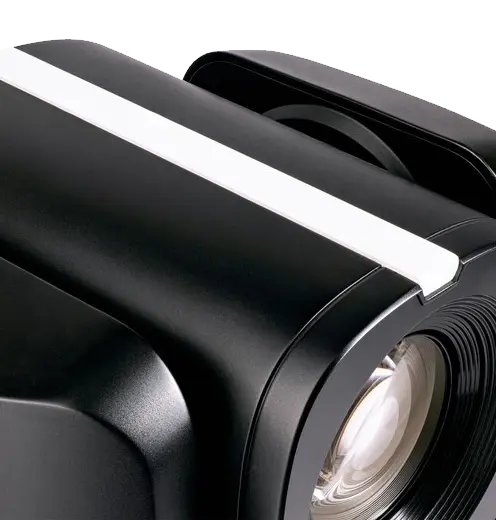

    • Full Tally Mohawk for talent recognition, and easier broadcast queuing. Automatically controlled via NDI.
    • Genlock capable PTZ for no-lag, "ultra-synced" productions where timing is crucial.
    • SFP+ Fiber port for even more added value to match production needs.
    • Take in audio over the 3.5mm line in input, or Mini XLR for versatile audio/ video embedment needs.
    • Capture realism through the virtual world using our FreeD protocol, over all outputs*
    • Automatically track targets with ease using our AI-based "Autotrack" feature.



    *  Only supported via 12G-SDI.

  • VIDEO
      Image Sensor 1/1.8” Progressive Sony CMOS
      S/N Ratio ≥50dB
      Resolution 2160p, 1080p, 1080i, 720p
      Resolution Rate See page 4 of camera brochure
      Outputs 12G-SDI, 3G-SDI, HDMI, USB, SFP+ slot, RJ45 (NDI®, IP, SRT)
      Min. Illumination 0.5Lux (50 IRE Max AGC,1/30, F1.8)
      White Balance

    Auto/Manual/AT/Push/Indoor/Outdoor/ Color Temp/Auto/Manual/Shutter Priority/Iris Priority Brightness Priori
      Pan/Tilt

    Pan Rotation Angle: -170° ~+ 170°

    Tilt Rotation Angle: -90° ~+ 90°

    Pan Rotation Speed: 0.1° ~+ 80°

    Tilt Rotation Angle: 0.1° ~+ 60°
    CAMERA STREAMING MODES
      ROI Priority Prioritizes 12G-SDI/HDMI/USB outputs
      NDI High-Bandwidth Mode Prioritizes HB NDI / NDI HX(3) to run simultaneously
    LENS MODULE
      Module 30X UHD Optical Zoom
      Lens f=6.91mm ~ 214.64mm
      F-Stop F1.35 ~ F4.6
      H-FOV 60°(wide) ~ 2° (tele)
      Min. Focus Distance 5ft (tele/wide)
    STANDARD
      IP Protocols UDP/TCP/IP/ONVIF/PELCO/VISCA/VISCAOVERIP/SRT RTSP/RTMP/NDI®/HT
      Audio Input 3.5 mm line level input Mini-XLR with 48V phantom Power
    PHYSICAL
      Camera Control

    Protocol:

    • VISCA Over IP
    • VISCA
    • ONVIF
    • NDI®
      Operation Temp.

    °F: 32° - 104°

    °C: 0° - 40°
      Dimensions

    mm: 266.7 x 228 x 305

    inches: 10.5 x ~9 x 12
      Weight

    kg: 4.59

    lbs: 10.12
      Power 12VDC (+9 - +15VDC)
      PoE PoE++ Standard (802.3bt)
