Rack-Mount Design

Prism Rackmount System

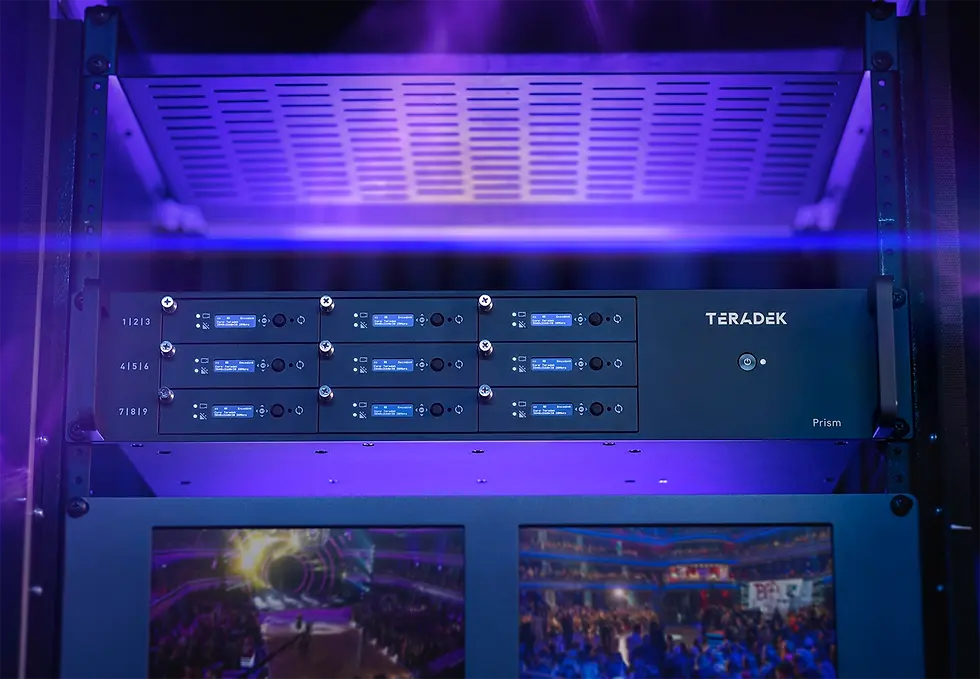

Prism Rack: High-Density Multichannel System



Scalable and reliable, Prism Rack gives you up to 4K 10-bit HDR video transmission with high-density encoding and decoding for live broadcasts from your server room, production truck, or mobile fly-pack.

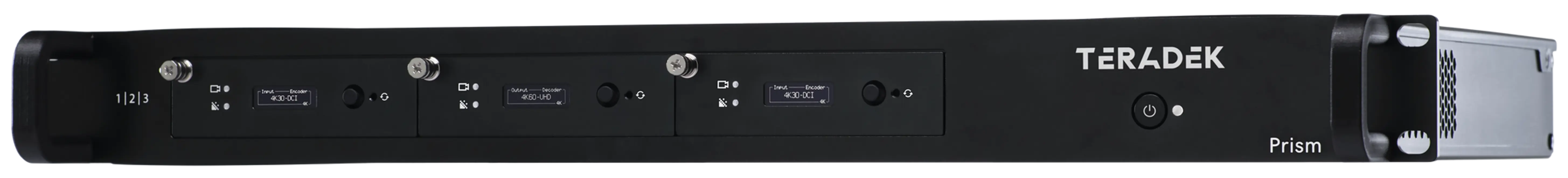

    • Available in 1RU or 2RU chassis
    • Scalable up to 9 cards
    • Ultra-low latency (ULL)
    • Multi-output: Integrated restreaming
    • 126-SDI or HDMI I/O
    • From HD to 4K: 4:2:2 | 10-bit HDR
    • Swappable cards: encoder, decoder,
and gateway
    • *Reduntant power: Built to run 24/7
    • Intercom: Analog IFB support
    • Camera-to-cloud ready



    *Available in Prism 2RU only.

  •   Prism 877 Prism 853/873
    VIDEO
    Inputs/Outputs 10-2877-S: 2x SD/HD/3G/6G/12G-SDI (75 Ω BNC Loop, Decode, or Encode/Decode) 10-2877-H: 2x HDMI 2.0 Type A (Loop, Decode, or Encode / Decode)
    Inputs

    Encoder: SD/HD/3G/6G/12G-SDI (75 Ω BNC)

    Decoder: N/A

    Outputs



    SD/HD/3G/6G/12G-SDI (75 Ω BNC Loopout)

    Supported Resolutions 4K DCI p23.98/24/25/29.97/30/50/59.94/60 4K UHD 23.98/24/25/29.97/30/50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60* 1080PsF 23/24/25/29/30 720p 50/59.94/60 576i 480i 4K DCI 23.98/24/25/29.97/30 4K UHD 23.98/24/25/29.97/30/50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 1080PsF 23/24/25/29/30 720p 50/59.94/60 576i 480i
    Supported Modes Single Encode, Single Decode, Bi-directional Encode/Decode (license required)

    Encoder: Single Encode

    Decoder: Single Decode

    VIDEO PROCESSING
    Compresssion

    ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264

    H.264: Baseline profile, Main profile, High profile

    ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265

    HEVC: Main profile

    ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264

    H.264: Baseline profile, Main profile, High profile

    ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265

    HEVC: Main profile

    Bitrate 250 Kbps to 85 Mbps 250 Kbps to 85 Mbps
    # of Streams

    Encoded (1x Enclode): Up to one 4KDCI p60 4:2:2 10bit

    Decoded (1x Decode): Up to one 4KDCI p60 4:2:2 10bit

    Encoded/Decoded (bi-directional: 1x 4KP60 4:2:0 8 bit encode; 1x 4KP60 4:2:0 8 bit Decode

    One
    HDR Support Yes, 2020-PQ, 2020-HLG, P3D65-PQ Yes, 2020-PQ, 2020-HLG, P3D65-PQ
    Format Conversion Support Built in video scaler and deinterlacer Built in video scaler and deinterlacer
    Recording 256GB NVME, SD Card - Full size, NFS NFS
    Bonding Teradek Bonding Protocol and Teradek Reliable Transport - Debonding* with license

    Encoder: Teradek Bonding Protocol and Teradek Reliable Transport (TRT)

    Decoder: Debonding with license

    Color Correction CDL/1024 1D LUT (supports 10-bit color), 33x33x33 3D LUT (supports 10-bit color) CDL/1024 1D LUT (supports 10-bit color), 33x33x33 3D LUT (supports 10-bit color)
    AUDIO





    Compression AAC-LC, OPUS AAC-LC, OPUS
    Bitrate 32kbps to 512kbps 48kH
    Input 8 channels embedded over SDI, or HDMI, 3.5mm TRS Stereo Line Level Analog Input

    Encoder: 8 channels embedded over SDI, or HDMI, 3.5mm TRS Stereo Line Level Analog Input

    Decoder: N/A

    Output 3.5mm TRS Stereo Line Level output

    Encoder: 3.5mm TRS Stereo Line Level output

    Decoder: 8 channels embedded on SDI, 3.5mm Stereo Headphone (TRS) output

    IFB Analog Line In / Line only (Analog input disabled for use with video Analog Line In / Line only (Analog input disabled for use with video)
    PROTOCOL SUPPORT
    Network TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
    Remote Managemnt Teradek Core Cloud, Private SDK Teradek Core Cloud, Private SDK
    Rack Attributes
    Dimensions (WxDxH)

    2U: 17” x 12.1” x 3.5” [431.8 x 307.3 x 88.9 mm]



    1U: 17” x 12.1” x 1.75” [431.8 x 307.3 x 44.5 mm]

    2U: 17” x 12.1” x 3.5” [431.8 x 307.3 x 88.9 mm]



    1U: 17” x 12.1” x 1.75” [431.8 x 307.3 x 44.5 mm]

    Weight

    2U: 8.9 lbs [4040g]



    1U: 5.45 lbs [2474g]

    2U: 8.9 lbs [4040g]



    1U: 5.45 lbs [2474g]

    Construction Milled/Bent aluminum Milled/Bent aluminum
    INTERFACES
    Switches On/Off button On/Off button
    Card Slots

    2U: 9x card slots

    1U: 3x cards slots

    2U: 9x card slots

    1U: 3x cards slots

    NETWORK
    Ethernet 2x 10/100/1000 Ethernet ports 2x 10/100/1000 Ethernet ports
    Backplane

    2U: 2x 2.5gb switching backplane

    1U: 1x 2.5gb switching backplane

    2U: 2x 2.5gb switching backplane

    1U: 1x 2.5gb switching backplane

    POWER
    Input

    2U: Up to two hot-swappable 495W A/C power inputs

    1U: 495W A/C power input

    2U: Up to two hot-swappable 495W A/C power inputs

    1U: 495W A/C power input

    Voltage 100-240V 50/60hz 100-240V 50/60hz
    Consumption 5W Nominal 5W Nominal





    Visit Teradek to view the full specifications.
