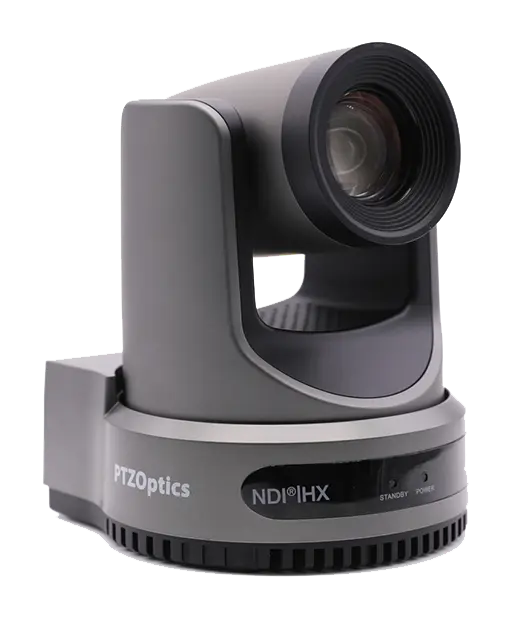

PTZOptics Move 4K PTZ Camera with Advanced Auto-Tracking

Move 4K PTZ Camera

The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.
    • Built-In Auto-Tracking
    • Advanced White Balance Modes
    • Wide Dynamic Range
    • Full Frame Rates:
      • 2160p-60/50/30/25
      • 1080p-60/50/30/25
      • 1080-60/50
      • 720p-60/50/30/25
    • 3D Noise Reduction
    • SRT Support
    • Up to 4K Resolution @ 60fps
    • Blackmagic Switcher Integration
    • Broadcast Frame Rates:
      • 2160p-59.94/29.97
      • 1080p59.94/29.97
      • 1080i59.94
      • 720p59.94
    • 5-Year Parts & Labor Manufacturer Warranty
  • IMAGE SENSOR & LENS
      Video Sensor
    • 12x: 1/2.5 inch, UHD Sony CMOS sensor, effective pixels: 8.51M
    • 20x and 30x: 1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M
      Lens
    • 12x: f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
    • 20x: f = 6.25mm ~ 125mm, F1.58 ~ F3.95
    • 30x: f = 7.1mm ~ 210mm, F1.61 ~ F5.19


    Estimated 35mm Equivalencies can be found here.
      Lens (35mm Equivalencies)
    • 12x: 25mm ~ 299mm, F1.8 ~ F2.6
    • 20x: 31mm ~ 589mm, F1.58 ~ F3.95
    • 30x: 32mm ~ 825mm, F1.61 ~ F5.19
      Resolution and Frame Rate
    • HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
    • SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
      Digital Zoom
    • Off: (3840x2160)
    • 2X: (1920x1080)
    • 3X: (1280x720)
    • 4X: (960x540)
    • 8X: (480x270)
    • 16X: (256x144)
      Field of View
    • 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)
    • 20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
    • 30x: Horizontal: 2.5° (tele) ~ 59.2° (wide), Vertical: 1.4° (tele) ~ 34.6° (wide)
      Display Field of View
    • 12x: 82.8°
    • 20x: 66.6°
    • 30x: 66.7°
      Min. Lux 0.5 Lux @ (F1.8, AGC ON)
      Shutter 1/30s ~ 1/10000s
    PAN/TILT
      Pan Movement ±170°
      Pan Speed 1.7°/s ~ 100°/s
      Tilt Movement 30° ~ +90°
      Tilt Speed 1.7°/s ~ 69.9°/s
      # of Presets 255
      Video Tracking Supported
      Image Flip, Mirror and Freeze Supported
    POWER OPTIONS
      Power Supply DC 12V / PoE+ (802.3at)
      Input Power 18W (Max)
    PHYSICAL SPECIFICATIONS
      Material Aluminum, Plastic
      Color White and Gray
      Dimensions (W x D x H)
    • 12x and 20x: 5.57 x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm
    • 30x: 6.69 x 7.12 x 8.98 in., 170 x 181 x 228 mm
      Weight
    • 12x and 20x: 3.25 lbs (1.47 kg)
    • 30x: 4.41 lbs (2.0 kg)
      Working Environment Indoor
      Operating Temperature 14°F ~ 104°F (-10°C to 40°C)
      Storage Temperature -40°F ~ 140°F (-40°C to 60°C)
    REAR BOARD CONNECTORS
      HD Video Output
    • 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
    • 1x HDMI: version 2.0
    • 1x USB 2.0: type A
    • 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
      Audio Interface
    • 1x 3.5mm Line level Input
    • 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
      Communication Interface
    • 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
    • 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
      Network Interface RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE+ (802.3at)
      Power Jack JEITA type (DC IN 12V)
