Telycam's Explore PTZ Camera features 1-inch sensor for broadcast excellence

Explore PTZ Camera

Boasting the industry-leading Sony 1-inch large CMOS sensor, Telycam's Explore PTZ camera revolutionizes image quality. This powerful sensor excels in low-light conditions, capturing stunning detail with minimal noise. Its superior light sensitivity, combined with an impressive depth of field, ensures sharp focus on subjects while beautifully blurring backgrounds. This makes it the versatile choice for broadcast professionals who demand the best, delivering cinematic quality in every shot.
    • PDAF: Phase-detection autofocus technology ensures rapid and accurate subject tracking, even in fast-paced environments

    • Built-in ND Filter: Allowing adjustment of light transmission levels to 1.6%, 6.3%, 25%, and 100%.

    • NDI® and NDI® HX Support: The Explore PTZ camera supports both NDI® and NDI®|HX, offering flexible, high-efficiency video streaming options

    • High-Speed 12G-SDI: Capable of transmitting 4K video at 60 frames per second over a single cable. This ensures uncompressed, high-quality video output with minimal latency

    • Genlock: Ensures seamless switching and compositing of video sources

    • FreeD Integration: Enables precise transmission of Pan, Tilt, Zoom, and Focus (PTZF) data directly from the camera to tracking system.

    • Versatile Output Options: Offers diverse output options, ensuring 4K60p output through NDI®, NDI®HX, 12G-SDI, HDMI, and SFP+

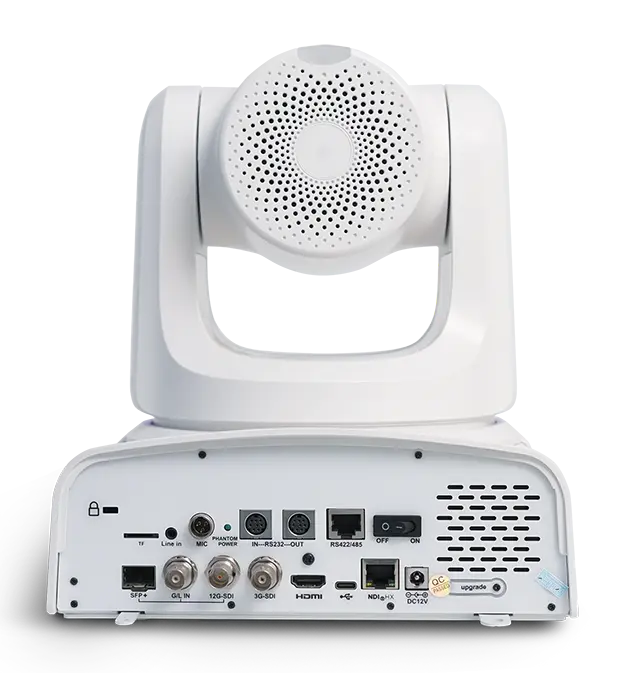

    • Robust Audio Capabilities: Features 3.5mm line-in and Mini XLR with Phantom power, providing compatibility with various microphones and audio equipment.

    • Local Recording: In-camera recording via a microSD card slot

    • Dual Tally Lights: These lights work seamlessly with NDI, Visca Serial, and Visca over IP protocols

    • Native AI-Based Auto-Tracking:  automatically following subjects to enhance ease of use

  • CAMERA   Part NO. TLC-900-IP-20-4K(NDI)-AB
      Sensor 1 inch, 9MP UHD CMOS sensor
      Zoom 20X optical zoom
      Lens  f=9.79~186.5mm, F2.8~F4.5
      Viewing Angle

    Horizontal: 71°(Wide)~4.05°(Tele)

    Vertical: 39.6°~2.2°

    Diagonal: 78.5°~4.6°
      Min. Working Distance

    Wide: 15cm

    Tele: 150cm
      S/N Ratio ≥50dB
    PAN/TILT
      Preset

    Remote controller: 10

    Serial port: 256

    Accuracy：0.1°
      Rotation Angle

    Pan: -170°~+170°

    Tilt: -90°~+90°
      Rotation Speed

    Pan: 0.1°~80°/s

    Tilt: 0.1°~60°/s
    IP STREAMING
      Video Encoding H.264/H.265
      Bitrate Control Variable bitrate(VBR), Constant bitrate(CBR)
      Video Bitrate NDI|HX3: 3Mbps ~ 120Mbps;
    NDI® high bandwidth: 90Mbps ~ 250Mbps
      Network Port Speed 1000M
      Protocol NDI®,NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC
    VIDEO FORMAT
      12G-SDI

    3840*2160P60/50/30/25/59.94/29.97/
    24/23.98;


    1920*1080P60/50/30/25/59.94/29.97/
    24/23.98;


    1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
      3G-SDI (Crop Only)

    1920*1080P60/59.94/50/30/29.97/25/
    24/23.98;


    1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25
      HDMI2.0

    3840*2160P60/50/30/25/59.94/29.97/
    24/23.98;


    1920*1080P60/50/30/25/59.94/29.97/
    24/23.98;


    1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
      NDI/NDIHX3

    Main Stream: 3840*2160P15~60; 1920*1080P15~60;  1280*720P15~60; 1024*576P15~60;


    Sub Stream: 640*360P15~30
      SFP+

    3840*2160P60/50/30/25/59.94/29.97/
    24/23.98;


    1920*1080P60/50/30/25/59.94/29.97/
    24/23.98;


    1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
      USB-C

    NV12: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30


    YUYV: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30


    MJPG: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60


    H264/H265: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60
    I/O INTERFACE
      Control Port RS232, RS485, RS422, RJ45, USB, NDI®HX3
      Video Port NDI®, NDI®HX3, HDMI 2.0, 12G-SDI, 3G-SDI, SFP+, USB Type-C
      Audio Port Mini XLR(with phantom power), stereo 3.5mm line in
      Tally Supported
      PoE++ Supported
      Daisy Chain Supported
    GENERAL
      Input Voltage DC12V, POE++(IEEE802.3bt)
      Operating Temperature

    °F: 14 ~ 122

    °C: -10 ~ 50
      Operating Humidity ≤80%
      Dimensions

    inches: 9.15 x 10.39 x 10.59

    mm: 232.5 ×264×269
      Net Weight

    lbs: 10.15

    kg: 4.6
      Color Black, White



    For additional information on the Explore PTZ camera, visit telycam.com
