Telycam's Drive+ SE PTZ camera available in 3G-SDI or HDMI

Drive+ SE PTZ Camera

Drive+ SE: An Enterprise-Level Solution for Live Streaming

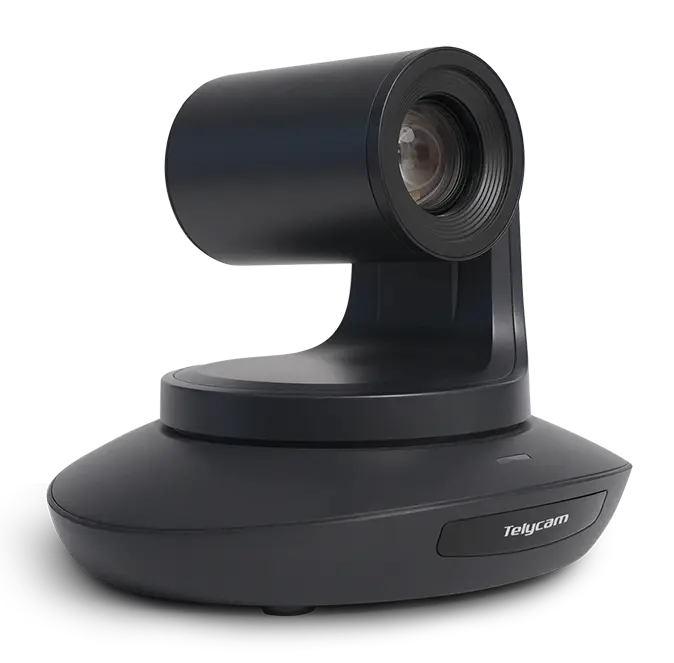

The Drive+ SE features an industry-leading image processor and a 1/2.8-inch 2.4-megapixel sensor;  With a 20X optical zoom lens and a 60-degree field of view, the Drive+ SE ensures rapid, accurate focus; and Drive+ SE provides selectable 3G-SDI or HDMI output for flexible integration.
    • NDI®HX3 Integration: NDI®HX, a variation of the NDI protocol optimized for lower bandwidth situations, ensures high-quality, real-time video transmission without the need for encoder and decoder.

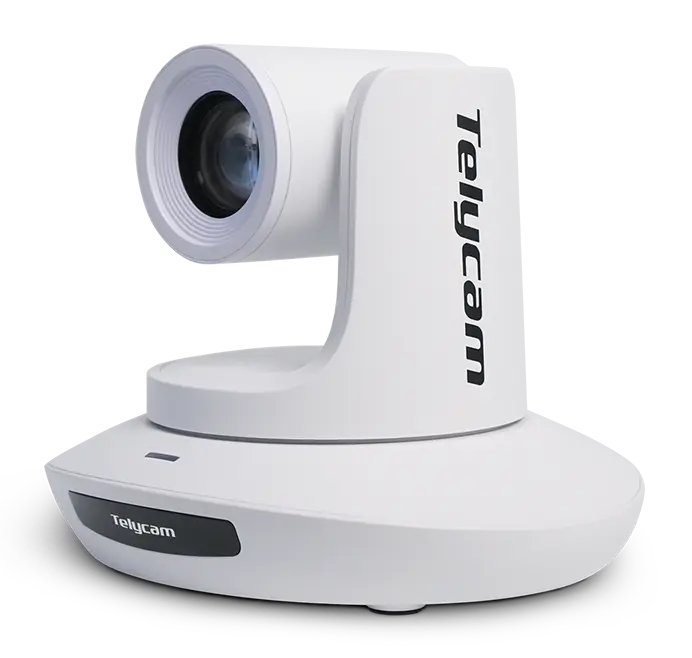

    • Selectable 3G-SDI or HDMI: Drive+ SE provides selectable 3G-SDI or HDMI output for flexible integration. Choose the connection that best suits your existing infrastructure without compromising on high-quality video capture.

      • 3G-SDI: Offers uncompressed, high-bandwidth video

      • HDMI: Allows for convenient connection to various display devices.

    • Full HD Clarity: Drive+ SE features an industry-leading image processor and a 1/2.8-inch 2.4-megapixel sensor, delivering FHD video at 1920x1080p60.

    • Zoom with Precision: With a 20X optical zoom lens and a 60-degree field of view, the Drive+ SE ensures rapid, accurate focus with its proprietary algorithm.

    • Built-in Tally: Drive+ SE series features built-in tally lights that work with NDI. This intuitive feature receives signals directly from NDI, without the need for separate tally control systems.

  • CAMERA   TLC-300-IP-20(NDI)-SE-SDI
    TLC-300-IP-20(NDI)-SE-HDMI
      Sensor 1/2.8 inch, 2.4MP CMOS sensor
      Zoom 20X optical zoom
      Lens f=4.9~98mm, F1.5~F3.0
      Viewing Angle

    Horizontal: 60°(Wide)~3.2°(Tele)

    Vertical: 34.14°~1.12°

    Diagonal: 67.08°~2.27°
      Min. Working Distance

    1.0m
      S/N Ratio ≥50dB
    PAN/TILT
      Preset

    Remote controller: 10

    Serial port: 128

    Accuracy：0.1°
      Rotation Angle

    Pan: -170°~+170°

    Tilt: -30°~+90°
      Rotation Speed

    Pan: 0.1°~120°/s

    Tilt: 0.1°~80°/s
    IP STREAMING
      Video Encoding H.264/H.265
      Bitrate Control Variable bitrate (VBR), Constant bitrate (CBR)
      Bitrate Range 1024Kbps~16384Kbps
      Network Port Speed 1000M
      Protocol NDI®HX, SRT, HTTP, RTSP, RTMP, DHCP, ONVIF, VISCA over IP, VISCA TCP, VISCA UDP, Pelco P/D, RTP Multicast, HTML
    VIDEO FORMAT
      NDl®HX

    1920*1080@3~60



    1280*720@3~60



    1024*576@3~60



    640*360@3~60 (low bandwidth mode)
      3G-SDI (or HDMI)

    1920*1080P60/50/30/25/59.94/29.97/
    24/23.98



    1920*1080I60/50/59.94



    1280*720P60/50/30/25/59.94/29.97
      USB-3.0

    1920*1080P60/50/30/25 (USB 3.0)


    1280*720P60/50/30 (USB 3.0)


    1280*720P25 (USB 3.0&USB 2.0


    1024*576P30 (USB 3.0&USB 2.0)


    960*540P30 (USB 2.0)


    640*360P30 (USB 2.0)


    512*288P30 (USB 2.0)
    I/O INTERFACE
      Control Port RS232, RS485, NDI®HX, USB 3.0(UVC1.5), USB 2.0(UVC1.1)
      Video Port NDI®HX, 3G-SDI(or HDMI), USB 3.0
      Tally Supported
      PoE++ Supported
      Daisy Chain Supported
    GENERAL
      Input Voltage DC12V, POE+(IEEE802.3at)
      Operating Temperature

    °F: 14 ~ 122

    °C: -10 ~ 50
      Operating Humidity

    ≤ 80%
      Dimensions

    inches: 8.66 x 7.48 x 6.81

    mm: 220 ×190×173
      Net Weight

    lbs: 2.98

    kg: 1.35
      Color

    Black, White



    For additional information on the Drive+ SE PTZ Camera visit telycam.com
