CR-N100 PTZ features 1/2.3" CMOS Sensor with Hybrid Auto Focus

CR-N100 PTZ Camera

Canon's CR-N100 PTZ camera produces outstanding image quality and is equipped with powerful features and functions in a cost-effective and compact form factor that can easily be placed in a variety of settings. Featuring a Canon 1/2.3" CMOS image sensor capable of 4K UHD video capture at 30 fps, or up to 60 fps in Full HD mode, coupled with a 4K 20x optical zoom lens, the CR-N100 is a versatile tool for that can be utilized in many industries including House of Worship, Education, Broadcast, Corporate, Events and more.
    • 1/2.3" CMOS Sensor with hybrid auto focus
    • High-quality 4K 30P and full-HD 60P over HDMI and IP
    • 20x optical zoom lens with optical image stabilization
    • Video output
      • HDMI
      • IP
      • USB
    • Built-in auto tracking lite
    • High-precision drive mechanism for smooth, responsive PTZ performance
    • Tally lamp on the front of the lens to indicate camera status at a glance
    • Supports PoE+, variety of serial/IP control protocol support include Canon XC Protocol, Standard Control for Easy Integration into any Production Environment
    • Supports Canon's Webcam Driver
    • Built-in NDI|HX and SRT (supports adaptive bitrate) support
    • Add-On Application support enable the installation of paid applications directly onto the camera
  • CAMERA

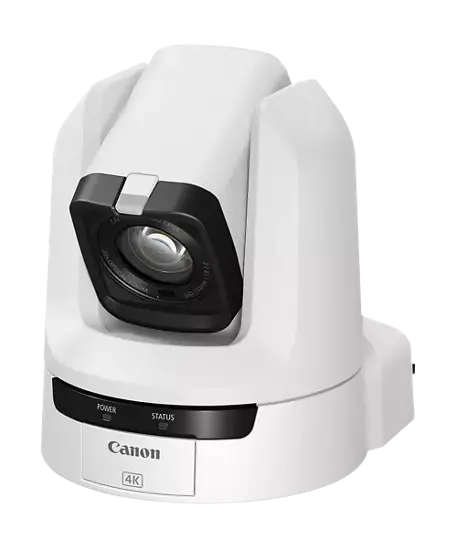

      Color Options Satin Black / Titanium White
      Image Sensor Type: 1/2.3 (1/2.3 in.) single-plate CMOS sensor
    Total pixels: ~21.14 megapixels
    Effective pixels: ~ 8.29 megapixels (3840 x 2160)
      Lens f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
    35mm equivalent focal length:
    [4K UHD] ~ 29.3 (W) – 601 mm (T)
    [Full HD] ~ 30.5 (W) – 627 mm (T)
      Zoom Digital: 20x
    Optical: 20x
      Lens Configuration 12 elements in 10 groups (including 2 aspheric elements)
      Min. Focusing Distance 1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.)
    throughout the zoom range
      Angle of View

    [4K UHD]
    Horizontal: 65.6 (W) – 3.6° (T)
    Vertical: 39.8° (W) – 2.0° (T)


    [Full HD]
    Horizontal: 63.5 (W) – 3.4° (T)
    Vertical: 38.4° (W) – 1.9° (T)
      Shutter Speed 1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
      Iris Manual/Automatic aperture
      Gain 0.0 dB – 36 dB
      White Balance

    AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp:
    3,200 K*), color temperature setting (2,000 K – 15,000 K), Manual


    *Color temperatures provided for reference purposes only
      Focus

    Focus mode: Manual, Continuous AF, Face AF, Tracking



    AF type: Hybrid AF, Contrast AF
      Gamma Normal1 (Standard), Normal3 (BT.709)
      Image Stabilizer Optical-shift
      Min. Subject Illumination ~1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)
      Pan and Tilt Pan operation range: Horizontal ±170°
    Pan operation speed: 0.2° – 300°/sec.
    Tilt operation range: Vertical -30° – +100°
    Tilt operation speed: 0.2° – 180°/sec.
    VIDEO OUTPUT FORMAT
      HDMI

    3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)


    1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)


    1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
      IP

    3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)



    1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)



    1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)



    640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)



    *If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected.


    *A frame rate that exceeds the frame frequency cannot be selected. *JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps
      Supported Video and Control Protocols Protocol: XC Protocol, RTSP/RTP, NDI®|HX, SRT, RTMP/RTMPS, Standard Protocol Communication (Serial), Standard Protocol Communication (IP)
      # of Presets Max. 100 (including home position)

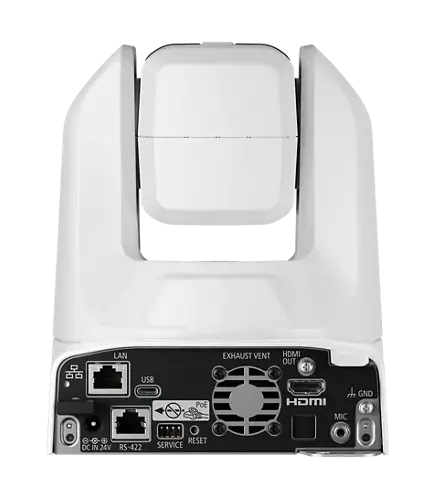

    INTERFACE
      Communication Control LAN, Serial, IR
      Network Terminal LAN x 1, RJ45, 1000Base-T
      HDMI OUT Terminal HDMI connector x 1, output only
      RS-422 Terminal RJ45 connector x 1
      Mic Terminal

    3.5 mm stereo mini jack (unbalanced, plug-in power supported)


    Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 k or
    more/Att.: 20 dB


    Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 k or more


    Supply Voltage: 2.4 V DC (Bias resistance: 2.2 k)
      USB Terminal Type-C (USB 3.0) x 1
    OTHER
      Operating Environment Temperature: 0°C – +40°C (+32°F – +104°F)
    Humidity: 10% – 90% (without condensation)
      Power Supply PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used
    External power source: 24 V DC (using included AC adaptor)
      Power Consumption PoE+ Input: ~13.9 W max. (body only)
    DC Input: ~13.3 W max. (body only)
      Dimensions (W x H x D)

    MM: ~154 x 178 x 164

    INCHES: ~6.06" x 7.01" x 6.46"
    (excludes protrusions)
      Weight ~ 2.2 kg / 4.86 lbs. (body only)
      Supported Controllers Hardware: RC-IP100, RC-IP1000
    Software: Remote Camera Control Application
