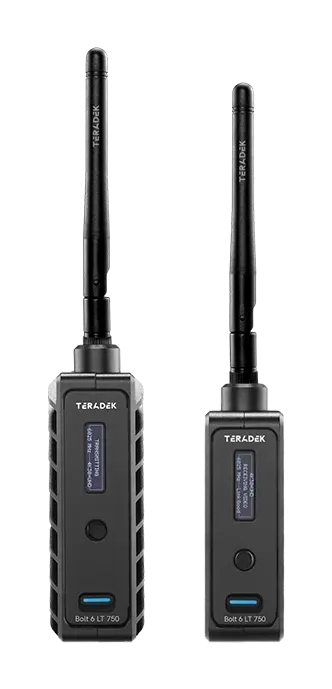

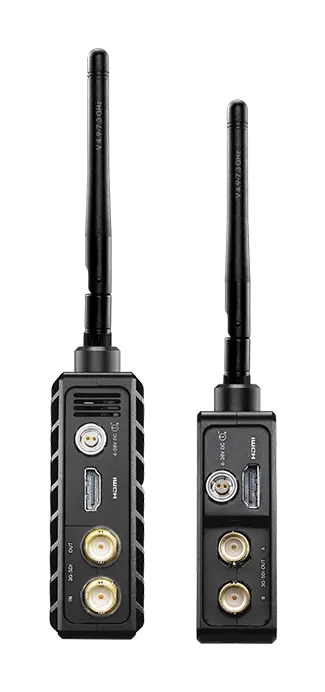

Bolt 6 LT 750 3G-SDI/HDMI Set
Bolt 6 LT Compact Wireless Video Transmission
Bolt 6 LT is a wireless video transmission system that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 LT Sets offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter.
The 750 model includes V (vertical) antennas. 1500 and MAX models include both V antennas and H (horizontal) antennas. H antennas are designed to maximize signal robustness in the most challenging RF environments.
Optionally, the 750 model of Bolt 6 LT can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.
Kit options include the Transmitter and Receiver by themselves or within a Deluxe kit that also includes Gold or V-Mount Battery plates.
- 12 new channels from 5.925 to 6.425GHz
- Added *6GHz channels
- Up to 5000ft of range.
- Twice as many operating frequencies as 5GHz-only solutions
- Almost 0 RF noise when compared with the 5GHz band
- Pristine Image: Up to 4K60 10-bit 422 HDR video with zero-delay over 5GHz and 6GHz frequencies
- Secure:
- Enhanced DFS and AES-256 encryption.
- Fully FCC/CE compliant
- Unprecedented Control: Manage signal quality, LUT output, and more inthe Bolt App
- Extended Workflow: Unlock camera control. Pass timecode, filename, and metadata
- Pair with up to six (6) receivers
- Cross-compatible: Connects to all Bolt 6 and Bolt 4K Devices
*6GHz is available in the US, EU, Canada, Japan, and Australia/New Zealand
- 12 new channels from 5.925 to 6.425GHz
