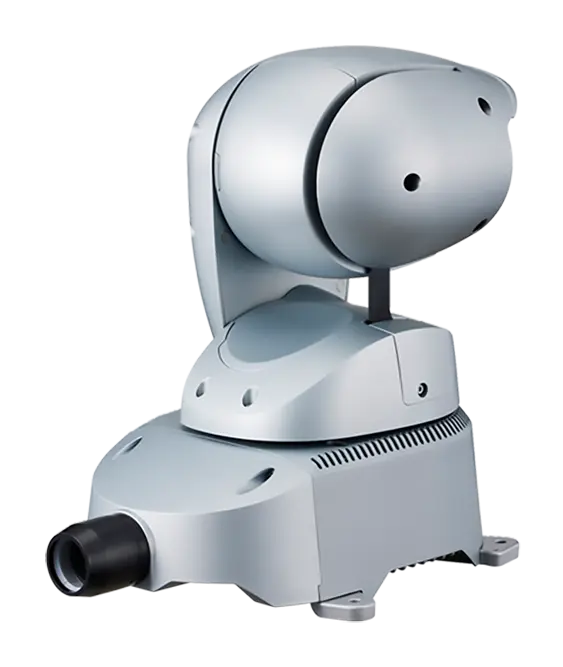

AW-UR100 IP65 PTZ Camera
Remotely Capture Images in All Kinds of Outdoor Environments
Panasonic's AW-UR100 4K IP65 PTZ camera captures high-precision images in 4K/60p supported by D.I.S.S (Dynamic Image Stabilizing System). The camera is durable enough to withstand harsh outdoor environments for on-site management such as airports and warehouses in coastal regions; on ships; as well as for live broadcasts during heavy snowstorms or typhoons. A wide range of protocols and I/Fs enable flexible and efficient system construction and reduce the risk of missing shots and mistakes, providing peace of mind for video producers.
- IP65-compliant, outdoor-ready:
- Built-in defroster: prevents frost, ice, and condensation from accumulating, even in extremely cold environments of as low as -15°C / 5°F.
- Built-in wiper*:
- Passed six rigorous durability tests
- Wind Tunnel:
- Performance is guaranteed even in environments with wind speeds of up to 15 m/sec
- Maintains basic performance even at wind speeds of 50 m/sec without being damaged
- Seismic Vibration: Vibration resistance was evaluated in with simulated earthquake waves
- Saltwater Spray:
- Casing survived spray from sodium chloride (NaCl)
- Heavy-duty, salt-resistant coating protects metal in the casings from rusting.
- Sunshine Weather:
- Exposed to ultraviolet rays for 46 days.
- Heavy-duty, salt-resistant coatings protect resins used in casings from ultraviolet rays and moisture.
- Waterproof/Dustproof (IP65):
- Camera subjected to continuous waterjets and dust from all directions
- You CAN use the AW-UR100 outdoors in the rain and in places that have flying sand and dust.
- CASS:
- Subjected to acidic compounds to assess corrosion resistance to test rust-resistant coating
- Wind Tunnel:
- Lens
- 24 x optical zoom to capture "bird's-eye" views
- Output entire images in 4K
- Crop zoom function**
- Specify up to three different positions for cropping
- Zoom in on cropped images up to 5X using zoom crop function
- 74.1° horizontal wide-angle capability for wide shooting areas
- 24 x optical zoom to capture "bird's-eye" views

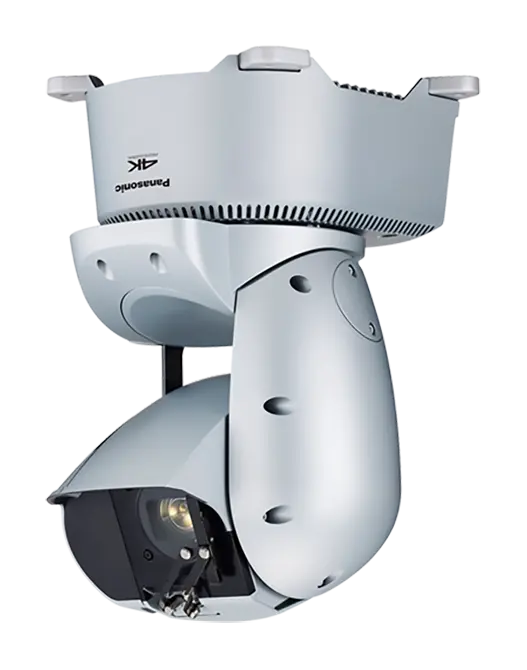

- Three (3) stabilization systems:
- Optical image stabilization (OIS)
- Electronic image stabilization (EIS)
- Dynamic image stabilizing system (DISS)
- Preset angles:
- Provide improved pan/tilt function
- Enables smooth rotation of camera
- PTZ Virtual USB Driver: The PTZ can be recognized and used as a USB camera.

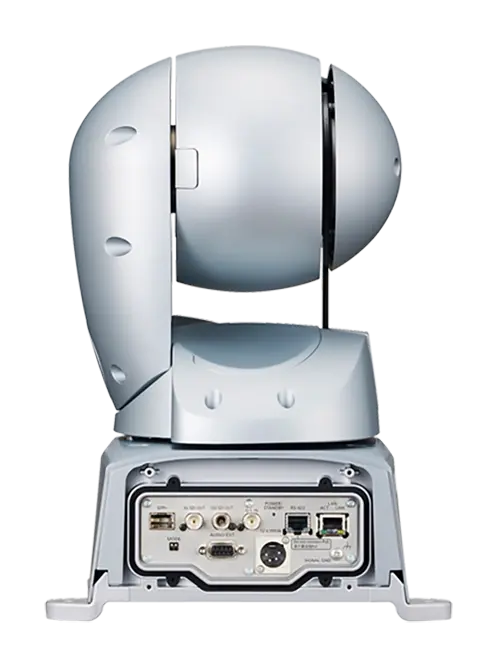

- Various I/F and Supported Protocols: Equipped with video transmission I/F options that support major baseband transmissions including
- 3G-SDI
- 12G-SDI: 12SDI ports can also be used for 3G-SDI
- NDI***
- NDI HX2
- SRT
- RTMP
* Software may need to be upgraded to use this function.
* *The image quality of FHD crop cannot be retained when crop zoom is used.
***NDI® is a video connectivity technology and is registered as a trademark by Vizrt NDI AB.
- IP65-compliant, outdoor-ready:
GENERAL Power Requirements DC 12 V to 21.8 V ±10 % (10.8 to 24.0 V) PoE++ IEEE802.3bt compliant: DC42-57V (camera end)
(Compatible with software authentication (LLDP communication))Current Consumption 3.1 A to 5.5 A (DC IN connector), 1.2 A (PoE++ power supply) Ambient Operating Temperature -15 °C to 45 °C (35 °F to 113 °F)* Allowable Humidity Range 10％ to 100％** Storage Temperature -20 °C to 55 °C (-4 °F to 131 °F) Weight ~9.0 kg / 19.84 lbs
Dimensions (W x H x D) mm: 258.0 x 367.0 x 392.0
inches: 10.16" x 14.45 x 15.43"Finish Silver, salt resistant coating
Compatible controllers AW-RP150GJ, AW-RP60GJ, AK-HRP1010GJ, AK-HRP1000GJ, AK-HRP1015GJ (Not available in some areas), AK-HRP250GJ CAMERA UNIT Image Sensor 1/2.5-type 4K MOS x 1 Effective pixels ~8,290,000 pixel Lens Motorized Optical 24x zoom, F1.8 to F4.0
[f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);
35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]Zoom Optical zoom: 24x
i.Zoom:- UHD 28x
- FHD 36x
Digital extender zoom: 1.4x, 2x
Digital zoom: 10X
Angle of View Range Horizontal: 74.1° (wide) to 3.3° (tele)
Vertical: 46.0° (wide) to 1.9° (tele)
Diagonal: 81.8° (wide) to 3.8° (tele)Optical Filter Through, 1/4, 1/16, 1/64, IR through (IR through is used as "night mode") Focus Switching between auto, manual Focus Distance Entire zooming range: 1200 mm (3.9 ft)
Wide end: 100 mm (0.33 ft)Color Separation Optical System 1MOS Minimum Illumination 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation) Horizontal Resolution 1,500 TV Typ (Center area, UHD mode, wide) PANT/TILT Camera/Pan-tilt Head Control IP connecting cable: LAN cable (category 5e or above (Cat 6 or greater for 4K), straight cable)****** Max. 100 m
AW protocol connecting cable: LAN cable******(category 5e or above, straight cable) Max. 100 m
Installation Method Stand-alone (Desktop) or suspended (Hanging)*8
Pan/tilt Operation Speed Speed range: 0.08°/s to 60°/s (Normal mode)
3 speed modes installed:
- Normal: 60°/s
- Fast1: 90°/s
- Fast2: 180°/s
Panning Range ±175°
Tilting range -30° to 210° LIVE STREAMING Image Streaming Mode JPEG (MJPEG), H.264, H.265, NDI® High Bandwidth, NDI® HX2**** Image Resolution 3840x2160, 1920x1080, 1280x720, 640x360, 320x180 Audio Compression Type AAC-LC, 48 kHz / 16 bit / 2ch Supported Protocols Network Protocol: ICMP, ARP, GARP, MLD
Transmission Protocol: TCP/IP, UDP/IP
Application Protocol:
IPv4: HTTP, HTTPS, DNS, NTP, DHCPv6, MDNS, SNMP, 802.1X
IPv6: HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X
Video Streaming Protocol: RTP/RTCP over RTSP, RTMP, RTMPS, SRT,MPEG2-TS over UDP, NDI® High Bandwidth, NDI® HX2
External Device Cooperation Protocol: FreeD, TSL5.0, SNMP
VIDEO OUTPUT Optical SFP+ compliant (Single Fiber)*** Please use MSA (INF-8074) standard compatible product SDI OUT 12: SMPTE2082-1, SMPTE424M, SMPTE292M compliant/75Ω (BNC x 1)*****
3G: SMPTE424M, SMPTE292M / 75Ω (BNC x 1)*****
OUTPUT FORMAT 4K 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) HD 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/29.97PsF, 1080/25p (Native),
1080/25PsF, 1080/23.98p over 59.94i, 1080/24p (Native), 1080/23.98p (Native),
1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p*Preheating required for temperatures below -5°C (1H).
**Storage humidity: 10% to 95% (no condensation)
***The signal to be sent out is the same as 12G SDI OUT. Optical signal input is not supported.
**** NDI® is a registered trademark by Vizrt NDI AB
*****Compatible with Level-A/Level-B.
******STP (Shielded Twisted Pair) is recommended.
