Panasonic AW-UE80W Professional PTZ Camera

AW-UE80 PTZ Camera

Panasonic's AW-UE80, available in both black (AW-UE80K) and white (AW-UE80W), is a PTZ camera suitable for capturing natural facial expressions of actors/performers as well as recording events without spoiling the ambiance. The recognizable dome-shaped design minimizes the intrusion of “the feeling of being recorded on video,” while the new direct-drive motor operates quietly so as to not disturb the production or spoil the ambiance. The camera offers high-image-quality 4K/60p resolution, wide 74.1° angle and optical zoom with up to 24x magnification.
    • Compact, quiet designs blends smoothly with surroudings
      • Inconspicuous design blends in with the surroundings to minimize “the feeling of being recorded on video”
      • Low operating sound
      • Image stabilzer ensures clear/stable video
    • Flexible: Adapt to varios shooting scenarios
      • 4K resolutions, wide angle zoom maintains "lively ambience" intact during streaming
      • Single controller can control up to 200 camera units
      • Built-in auto tracking function
      • Supports FreeD
    • High-quality videos resistant to interruption
      • Smooth playback
      • Secure, stable streaming protocol reduces risk of communication trouble
    • Compatible with free Panasonic software
    • Compatible with IT/IP platform "KAIROS"
  • GENERAL
      Power Requirements 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
      PoE++*1 IEEE802.3bt compliant: DC42 to 57 V
    (Software authentication (LLDP) is supported)
      Current Consumption 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply)
      Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
      Allowable Humidity Range 20 ％ to 90 ％ (no condensation)
      Storage Temperature -20 °C to 50 °C (-4 °F to 122 °F)
      Weight

    ~2.0 kg / 4.41 lbs (excluding ceiling mounting bracket)


    ~2.25 kg / 4.96 lbs (including ceiling mounting bracket)
      Dimensions (W x H x D) mm: 170.0 x 211.0 x 171.0
    inches: 6.69" x 8.31" x 6.73"
      Finish

    White: AW-UE80W

    Black: AW-UE80K
      Compatible controllers AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*2, 3, AK-HRP1005*2, 3, AK-HRP1015*3, AK-HRP250*3
    CAMERA UNIT
      Image Sensor 1/2.5-type 4K MOS x 1
      Effective pixels ~8,490,000 pixelS
      Lens Motorized Optical 24x zoom, F1.8 to F4.0
    [f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);
    35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]
      Zoom

    Optical zoom: 24x
    i.Zoom:

    • UHD 28x
    • FHD 36x

    Digital extender zoom: 1.4x, 2x
      Angle of View Range Horizontal: 74.1° (wide) to 3.3° (tele)
    Vertical: 46.0° (wide) to 1.9° (tele)
    Diagonal: 81.8° (wide) to 3.8° (tele)
      Optical Filter )Through, 1/4, 1/16, 1/64, IR through(IR through is used as "night mode")
      Focus Auto, manual
      Focus Distance Entire zooming range: 1200 mm (3.9 ft)
    Wide end: 100 mm (0.33 ft)
      Color Separation Optical System 1MOS
      Minimum Illumination 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
      Horizontal Resolution 1,500 TV Typ (Center area, UHD mode, wide)
    1,000 TV Typ (Center area, FHD mode, wide)
    PANT/TILT
      Camera/Pan-tilt Head Control

    IP connecting cable

    AW protocol connecting cable
      Installation Method

    Stand-alone (Desktop) or suspended (Hanging)*8
      Pan/tilt Operation Speed

    Speed range: 0.08°/s to 60°/s (Normal mode)*9



    3 speed modes installed:

    • Normal:60°/s
    • Fast1:90°/s
    • Fast2:180°/s
      Panning Range

    ±175°
      Tilting range -30°to 90°*10
    LIVE STREAMING
      Image Streaming Mode JPEG (MJPEG), H.264, H.265, NDI® High Bandwidth, NDI® HX2*(H.264)
      Image Resolution 1920×1080, 1280×720, 640×360, 320×180
      Audio Compression Type AAC-LC, 48 kHz, 16 bit, 2 ch
      Supported Protocols

    Network Protocol: ICMP, ARP, GARP, MLD



    Transmission Protocol: TCP/IP, UDP/IP



    IPv4: HTTP, HTTPS, DNS, NTP, DHCPv6, MDNS, SNMP, 802.1X



    IPv6: HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X



    Video Streaming Protocol: RTP/RTCP over RTSP, RTMP, RTMPS, SRT,MPEG2-TS over UDP, NDI® High Bandwidth, NDI® HX2



    External Device Cooperation Protocol: FreeD, TSL5.0, SNMP

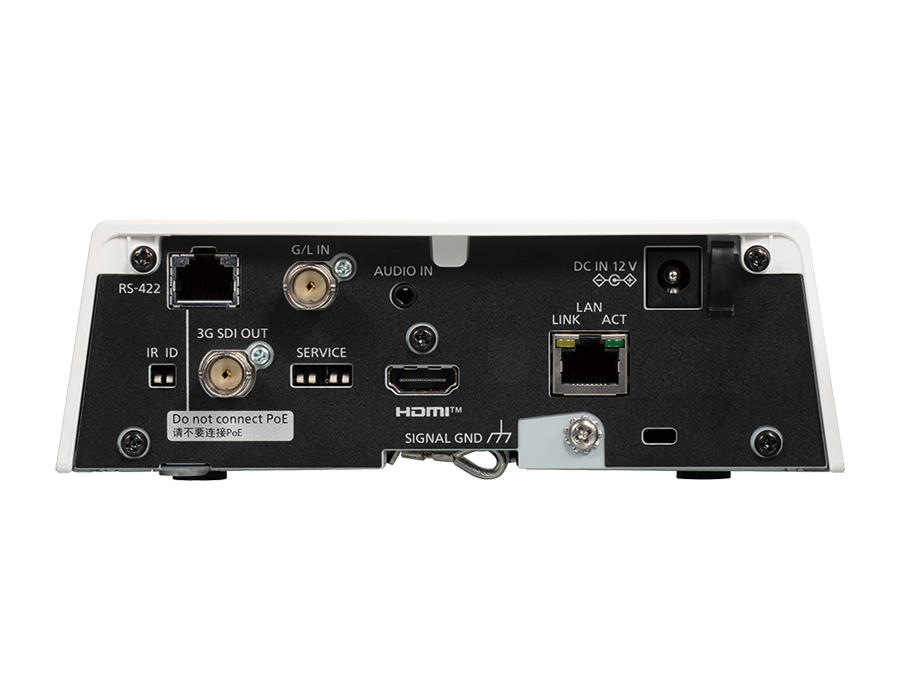

    VIDEO OUTPUT


      HDMI HDMI 2.0 connector
    4:2:2/10bit
    HDCP is not supported. Viera Link is not supported.
      3G-SDI OUT SMPTE292M/424M/ 75 Ω(BNC×1)
    • Level-A/Level-B supported
    OUTPUT FORMAT


      SDI HD: 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just),23.98p (Native), 720/59.94p, 50p
      HDMI

    4K: 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)



    HD: 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),23.98p (over59.94p), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p

    *1:In normal use within the ambient operating temperature range, the PoE+ switch will also work. However, the camera may stop operating or the power supply may be stopped depending on the specifications of the PoE+ switch when the power load exceeds the PoE+ specified power when abnormalities such as pan/tilt is stopped due to external forces or when the ambient temperature has changed significantly. Operation with PoE+ switch is not guaranteed,.Check the operation in advance under the condition of use, and judge the use yourself. *2:Discontinued Model. *3:Will be supported in the future. *8:To ensure safety, the unit must be secured using the mount bracket supplied. * NDI® is a video connectivity technology and is registered as a trademark by Vizrt NDI AB.



    Visit Panasonic to view the specifications in full.
