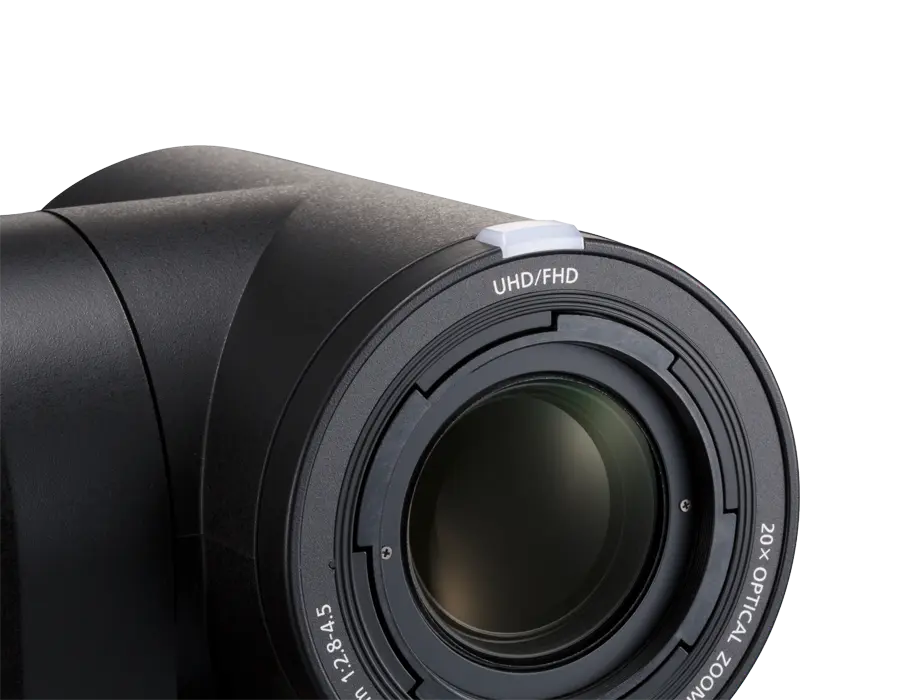

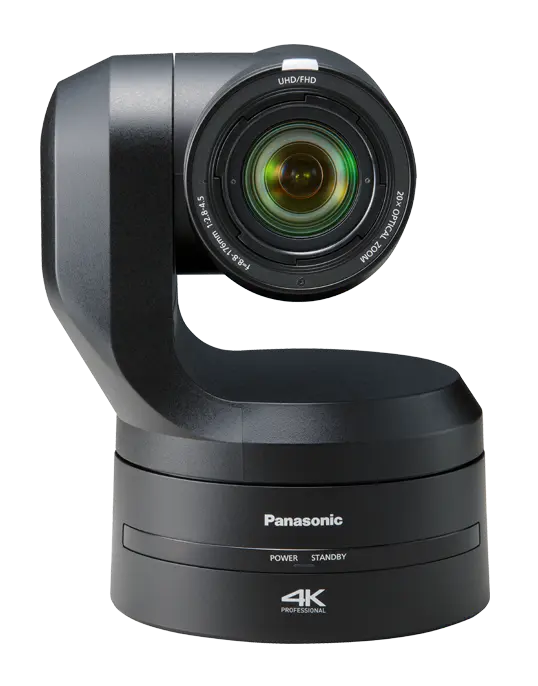

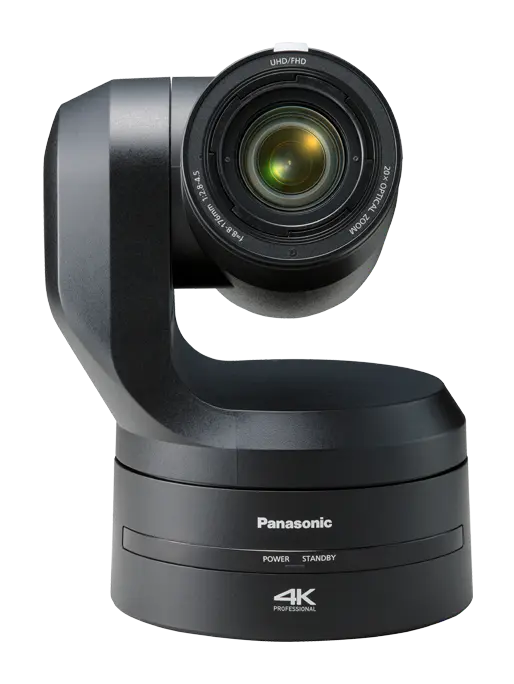

Panasonic AW-UE150K PTZ Camera

AW-UE150 PTZ Camera

When only the best PTZ will do, look no-further than the AW-UE150. From its 4K/60p output to an industry-first 75.1 degree, wide-angled FOV, the AW-UE150, available in black (AW-UE150K) or white (AW-UE150W), is tough to beat. Staying atop the competition, Panasonic also added a large 1” MOS sensor for enhanced dynamic range, along with 12G-SDI output for a real 4K experience. Let this industry leader be the star of your productions.
    • High-Quality 4K Image
      • 4K 60p/50p shooting
      • Mounted 1.0-type MOS sensor
      • Industry's first 75.1° horizontal, wide-angle shooting
      • Optical image stabilizer (OIS) loaded
      • Adaptive matrix prevents color overloaded from blue LEDs
    • Various Functions
      • Auto iris window
      • JPEG image saving
      • Incredible pan/tilt performance
      • Cropping
      • Tally LED Limit
    • Wide Expandability
      • Large tally lamp
      • Improved web UI
      • SRT support for stable video transmission over public networks
      • Direct broadcast via RTMP
      • NDI® HX2 Compatibility
  • GENERAL
      Power Requirements 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply)
      Current Consumption 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
      Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
      Ambient Operating Humidity 20 % to 90 % (no condensation)
      Storage Temperature –20 °C to 50 °C (–4 °F to 122 °F)
      Mass ~4.2 kg / 9.24 lbs (excludes mounting bracket)
      Dimensions (W x H x D)

    mm: 213 mm x 267 mm x 219 mm

    inches: 8-3/8" x 10-1/2" x 8-5/8"



    (excludes protrusions, direct ceiling mount bracket)
      Finish AW‑UE150WP/AW‑UE150WE: Pearl white
    AW‑UE150KP/AW‑UE150KE: Black
      Controller Supported AW-RP150GJ, AW-RP50*1, AK-HRP1000GJ*1
    CAMERA UNIT
      Imaging Sensors 1-type 4K MOSx1
      Effective Pixels 20,180,000 pixels
      Lens Motorized Optical 20x zoom, F2.8 to F4.5
    [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches);
    35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)]
      Zoom

    Optical zoom: 20x
    i.Zoom:

    • UHD 24x
    • FHD 32x

    Digital zoom: 10x
      Angle of View Range Horizontal: 75.1° (wide) to 4.0° (tele)
    Vertical: 46.7° (wide) to 2.3° (tele)
    Diagonal: 82.8° (wide) to 4.6° (tele)
      Optical Filter Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
      Focus Atuo, Manual
      Focus Distance Entire zoom range: 1000 mm (3.3 ft)
    Wide end: 100 mm (0.33 ft)
      Color Separation Optical System 1MOS
      Standard Sensitivity F9, 2000 lx (When normal mode is selected)
      Minimum Illumination 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
      S/N 60 dB or more
      Horizontal Resolution 2,000 TV lines Typ (Center area)
    PAN/TILT
      Camera/Pan-tilt Head Control

    IP connecting cable: LAN cable*6*7: (category 5e or above, straight cable / crossover cable), max. 100 m (328 ft)



    AW protocol connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft)
      Installation Method Stand-alone (Desktop) or suspended (Hanging)*8
      Operation Speed Min: 0.08°/s
    Max: 60°/s or higher*9
    • Maximum speed is 180°/s in high-speed mode
      Pan Range ±175°
      Tilt range –30° to 210°*10
    LIVE STREAMING
      Image Streaming Mode JPEG (MJPEG), H.264, H.265
      Image Resolution 3840x2160, 1920x1080, 1280x720, 640x360, 320x180
      Supported Protocol

    IPv6: TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT



    IPv4: TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT
    VIDEO OUTPUT


      HDMI

    HDMI 2.0 standard
    4:2:2/10bit
    • HDCP is not supported.
    • Viera Link is not supported.
      12G-SDI OUT SMPTE 2082‑1 standard / 75 Ω (BNC x 1)
      3G-SDI OUT SMPTE424M/SMPTE292 / 75 Ω (BNC x 1)
    • Level-A/Level-B supported
      MONI OUT SMPTE292 / 75 Ω (BNC x 1)
      Optical Fiber SFP+ standard
    • This unit does not support input by optical signals
    • Please use MSA (INF-8074) standard compatible product.
    VIDEO FORMAT
      4K 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4
      HD 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

    *1:Use may require a software version update. *2:1 dB step increments can be set.*4:Native output. *5:It denotes “1080/23.98p over 59.94i”. *6:Use of an STP (shielded twisted pair) cable is recommended. *7:Category 6 or more is used when sending 4K images. *8:To ensure safety, the unit must be secured using the mount bracket supplied. *9:Quietness, stationary accuracy, etc., in high-speed mode may vary from normal mode. *10:Depending on the pan or tilt position, the camera may be reflected in the image. *12:When firmware later than ver 2.94 is installed. 4K image output not supported in NDI® HX2 mode. * NDI® is a video connectivity technology and is registered as a trademark by Vizrt NDI AB in the United States and other countries.



    Visit Panasonic to view these specifications in full.



    We at Stream Dudes embrace the path that Panasonic is blazing in this industry and highly recommend their solutions to our customers. To learn more, please contact Stream Dudes for more information.
