Autobahn 4U Dude Rack
Nagelbett Autobahn 4U Video Production Switcher
The Nagelbett series is our most ambitious and daring iteration of our Dude Rack lineup. Leading with performance first and foremost, the Nagelbett series proudly feature: AMD Ryzen processors and the impressive, NVIDIA Quadro GPUs. When paired together, they create the ultimate Dude Rack production solutions.

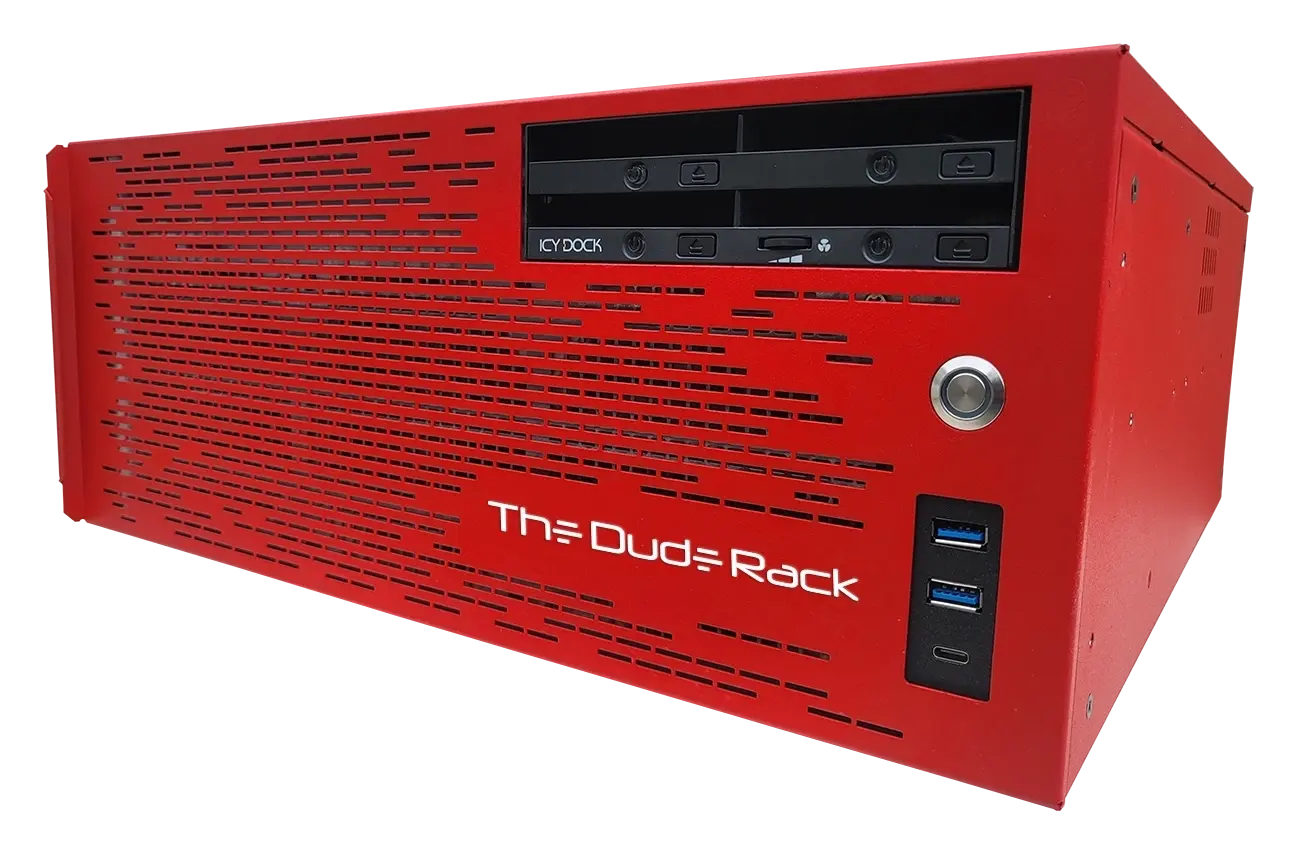

If the Nagelbett isn’t impressive enough for you—”nothing to be afraid of“—we’ll bring on "THE EXTREME": The Nagelbett: Autobahn: (pronounced: nä-gəl-bet \ ȯ-tō-ˌbän) 4U Dude Rack production switcher. Designed with dual NIC cards to allow more throughput in NDI workflows, the Autobahn prioritizes drive speed and processing power over physical inputs…and ze lingonberry pancakes.
- Custom, 4U rack chassis featuring liquid CPU cooling
- Four (4) hot-swap *SSD Bays for additional storage
- vMix Pro Software (pre-installed and professionally-configured)
- Simultaneously stream to multiple destinations
- ISO Record in a variety of formats
- Slow-motion
- Two channels of Instant Replay
- Chroma key and more!
- Inputs: 16
- 16 12G bidirectional inputs or
- 14 12G bidirectional inputs, 2 outputs
- Resizable bar RAM (what is “resizable bar RAM”?)
- (2) 1TB NVMe M.2 storage
- Dual 10GBe NIC cards = more throughput for NDI
- 128GB RAM
- Dedicated audio card with two (2) TRS inputs and two (2) TRS outputs
- Exceeds vMix Reference System Obtanium Specifications
- Leasing and Financing Available
*Media drives not included.
PHYSICAL Weight 35 lbs (15.88 kg) Dimensions Inches: 19"W x 15" D x 7" H
Millimeters: 482.6 x 381 x 177.8Inputs (Physical) Up to 16 12G bi-directional inputs; or
14 inputs and two (2) outputsNDI Support for multi-channel video input/output over gigabit ethernet network using open *NDI protocol Output (Physical) N/A Max. Output Resolutions Up to 2160p120 for SDI;
4K 59.94p IP/recording4K Ready Yes Compatible Input Formats SDI:
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080150, 1080159.94, 1080160 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI , 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI, 4Kp23.98DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120CPU AMD Ryzen GPU NVIDIA Quadro with resizable bar RAM RAM 128GB STORAGE Built-In (2) 1TB NVMe M.2 storage Expandable *Yes, (4) 2.5" hot/swap SSD bays NETWORKING On-Board dual 10GBe networking LIVE STREAMING Software vMix Pro vMix Reference Obtanium Transitions CrossZoom, Cube, CubeZoom, Cut, Fade, Fly, FlyRotate, Merge, Slide, Zoom, VerticalWipe, VirtualSlide, Wipe, and two (2) custom Stinger channels. Audio Mixing Independent control/monitoring of all audio sources with Compressor, Delay, EQ, Follow (Auto Mixing), Gain, Mute, and Solo Video Conferencing vMix Call: Up to eight (8) callers/guests. Actively bring in guests onto your live show using only a web browser and webcam
Zoom: Create and join zoom meetings directly from vMix (vMix 27 or newer)Replay Built-in multi-camera instant replay system with continuous recording in full HD and playback.
Two-channel playback also is included with the ability to show audiences two (2) camera angles side-by-side or in almost any arrangement you can think of.Social Media Integrated application for live or queued insertion of Facebook, X (formerly Twitter) or internat relay chat (IRC) feeds. User can both approve AND control content from web-connected devices Multiview Each input includes five (5) “multi-view” overlay channels for creating complex Mix/Effects, incorporate logo "bugs", lower thirds, text or titles, in combination Telestrator Turn any modern browser into a Telestration device. Telestrator is an input with a transparent background that can be drawn on using a web browser. Other Downstream Keyer: 4 DSKs / overlays with individual transitions, alpha channel and custom scaling/positioning.
Desktop Capture: Ability to grab screen capture from local/remote PC-Mac sources included
Touch Screen Web Interface: Control vMix remotely using the vMix Web Controller on your Surface, iPad, iPhone, Android or other touch screen device using the built in web interface
Professional color correction & monitoring tools
SRT Support: Control vMix remotely using the vMix Web Controller on your Surface, iPad, iPhone, Android or other touch screen device using the built in web interface*SSD media drives not included.
Because we are an Advanced Partner and Reseller of vMix, Stream Dudes is your best resource and knowledge base in the Midwest United States. Carrying this distinctive certification means that you can be assured that you are purchasing from a reputable source who will, above all, not only help you purchase the right vMix solution, Stream Dudes also offers professional, virtual vMix training by request. In addition to helping you purchase a vMix system, we also have the ability to build and custom configure a vMix Reference System to meet your specific needs.
To learn about specific system specifications contact Stream Dudes at info@streamdudes.com or call (715) 972-3833 to speak with a team member. Additionally, visit the Stream Dudes Custom Shop to custom configure your own Dude Rack or Dude PC. Ask us about control surface options, wireless video transmission systems, or network storage solutions to complement your workflow.
