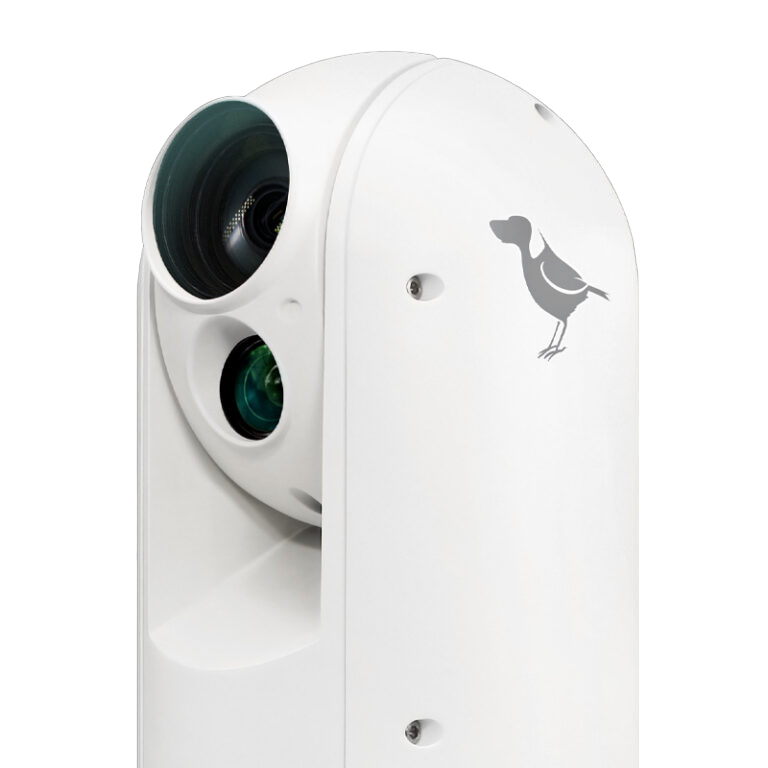

A300 Waterproof PTZ Camera
Let’s go outside. The A300 PTZ Camera was specifically designed for fixed outdoor installations such as sports. Capture amazing video in any weather with the waterproof and rugged, A300 camera. This camera boasts an IP67 rating and an unbelievable Wind Load Durability rating equal to that of a category four (4) hurricane. In short, the A300 can pretty much withstand nearly any weather condition.
By teaming up BirdDog’s custom NDI® silicon chip, a Sony CMOS backlit sensor, and a true Sony image module A300 has lightning auto focus, incredibly sharp images, and insanely fast zoom. A300 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI and Full NDI® simultaneously.
- Sony CMOS backlit sensor
- Lightning auto focus
- Incredibly sharp images
- 30x optical zoom (insanely fast)
- Frame rates up to 1080p60
- Simultaneously outputs SDI and full NDI
CAMERA Image Sensor 1 / 2.8 inch CMOS 2.13MP Lens 4.3-129mm Optical Zoom 30x Digital Zoom 12x Horizontal Angle of View 63.7° (W) – 2.3° (T) Aperture F1.6 (W) – F4.7 (T) Min. Illumination Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode) Shutter Speed 1/1 – 1/10000s Focus Auto, Push, Manual White Balance Auto, Indoor, Outdoor, Manual, OPW, ATW Exposure Auto, Manual, Shutter/Iris Priority Backlight Compensation Yes MECHANICAL Pan Movement Horizontal: 360° continuous pan
(Zoom Adaptive Speed Range: 0.01°〜80°/s)Tilt Movement Vertical: +90° to -30°
(Zoom Adaptive Speed Range: 0.1°〜90°/s)# of Presets 255 (Speed adjustable: Up to 150°/s) Environmental Outdoor/Indoor, IP67, corrosion resistant treated housing, Wind load durability 60m/s, Nitrogen filled housing Operating Temperature -40 to 60 °C / -40 to 140 °F Operating Humidity ≤80% Illumniation IR Laser, illumination up to 500m VIDEO INTERFACE Video Output NDI/SDI Video Formats 1080p 60, 59.94, 50, 29.97, 25
1080i 60, 59.94, 50
720p 60, 59.94, 50Audio I/O 3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)CONTROL INTERFACE IP PTZ Control NDI Control (auto configuring), VISCA IP Serial PTZ Control RS422/RS485 Connector Serial Control Protocol VISCA / PELCO D POWER & DIMENSIONS Power Input AC 24V, PoE 97W (BirdDog PoE 97W Injector, optional) Power Consumption Min: 36W; Max: 76.68W（Fully loaded operation with heater and IR Laser on) Dimensions 180 x 180 x 423 mm / 7 x 7 x 17 in. Weight 10.2 kg / 22.5 lbs. NETWORK Video Compression Full NDI – i-frame high quality low latency NDI for production Network Protocol NDI – Discovery, configuration and control Web Control Interface Full control via Web/Mobile UI including Scene presets
